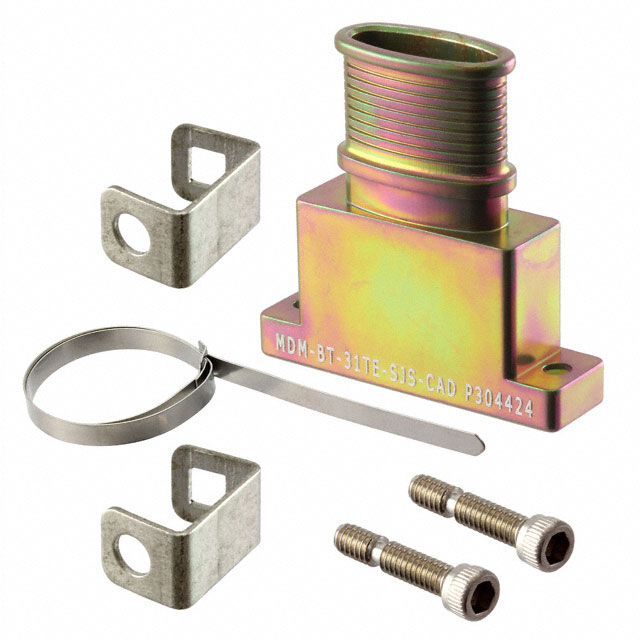

MDM-BT-31TE-SJS-CAD
ActiveITT Cannon, LLC
D SUB BACKSHELL, BAND TIED, 31 POS, MDM SERIES, 180°, ALUMINUM BODY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDM-BT-31TE-SJS-CAD
ActiveITT Cannon, LLC
D SUB BACKSHELL, BAND TIED, 31 POS, MDM SERIES, 180°, ALUMINUM BODY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDM-BT-31TE-SJS-CAD |
|---|---|
| Accessory Type | One Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Features | Mating Screws, Spring Clips, Bandstrap |
| Material | Aluminum |
| Number of Positions | 31 |
| Plating | Yellow Chromate over Cadmium |
| Primary Material | Metal |
| Shielding | Shielded |
MDM-B Series
| Part | Features | Material | Cable Exit | Number of Positions | Cable Type | Primary Material | Shielding | Accessory Type | Plating | Color |
|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 31 | Round | Metal | Shielded | One Piece Backshell | Yellow Chromate over Cadmium | |
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 9 | Round | Metal | Shielded | One Piece Backshell | Yellow Chromate over Cadmium | |
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 9 | Round | Metal | Shielded | One Piece Backshell | Electroless Nickel | Silver |
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 37 | Round | Metal | Shielded | One Piece Backshell | Yellow Chromate over Cadmium | |
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 31 | Round | Metal | Shielded | One Piece Backshell | Electroless Nickel | Silver |
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 21 | Round | Metal | Shielded | One Piece Backshell | Electroless Nickel | Silver |
ITT Cannon, LLC | Bandstrap Mating Screws Spring Clips | Aluminum | 180 ° | 21 | Round | Metal | Shielded | One Piece Backshell | Yellow Chromate over Cadmium |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 490.07 | |
| 10 | $ 416.65 | |||
Description
General part information
MDM-B Series
31 Position One Piece Backshell Connector 180° Shielded
