MSM30-NX00A10-SNCSNCNF-RI0GN024-Q0000-S

Active

SCHURTER Inc.

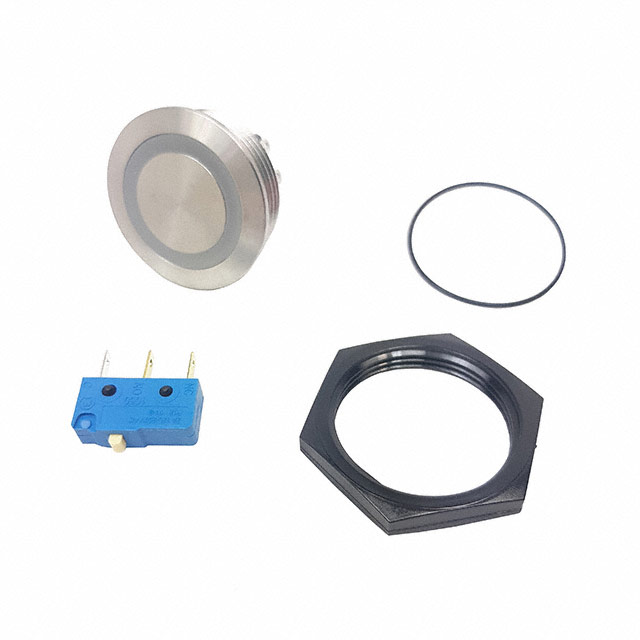

MSM 30, METAL SWITCH, 100 MA SWI

Deep-Dive with AI

Search across all available documentation for this part.

MSM30-NX00A10-SNCSNCNF-RI0GN024-Q0000-S

Active

SCHURTER Inc.

MSM 30, METAL SWITCH, 100 MA SWI

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.19

Description

General part information

MSM30-NX Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MSM30-NX00A10-SNCSNCNF-RI0GN024-Q0000-S	MSM30-NX Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	100 mA	5 - 100 mA
Electrical Life	200000 Cycles	50000 - 200000 Cycles
Illumination Type, Color	LED, Green	Red, LED, Blue, Green
Illumination Voltage (Nominal)	24 V	24 V
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	30.1 mm	30.1 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	-	125 - 250 V
Voltage Rating - DC	30 V	30 V

MSM30-NX Series

MSM SERIES 30MM METAL LINE SWITC

Part	Illumination Type, Color	Electrical Life	Type	Termination Style	Actuator Marking	Ingress Protection	Panel Cutout Dimensions [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Voltage Rating - DC	Switch Function	Actuator Type	Mounting Type	Color - Actuator/Cap	Mechanical Life	Voltage Rating - AC
SCHURTER Inc. MSM30-NX00A10-SNCSNCNF-RIRGB024-Q0000-S	Blue, Green, LED, Red	200000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	100 mA	SPDT	24 V	30 V	On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles
SCHURTER Inc. MSM30-NX00A10-SNCSNCNF-RI0BL024-Q0000-S	Blue, LED	200000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	100 mA	SPDT	24 V	30 V	On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles
SCHURTER Inc. MSM30-NX0010A-SNCSNCNF-RI0RD024-Q0000-S	LED, Red	50000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	10 A	SPDT	24 V		On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles	250 V
SCHURTER Inc. MSM30-NX0010A-SNCSNCNF-RI0GN024-Q0000-S	Green, LED	50000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	10 A	SPDT	24 V		On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles	250 V
SCHURTER Inc. MSM30-NX0005A-SNCSNCNF-RI0RD024-Q0000-S	LED, Red	200000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	5 A	SPDT	24 V		On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles	125 V
SCHURTER Inc. MSM30-NX0005A-SNCSNCNF-RI0GN024-Q0000-S	Green, LED	200000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	5 A	SPDT	24 V		On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles	125 V
SCHURTER Inc. MSM30-NX00A10-SNCSNCNF-RI0GN024-Q0000-S	Green, LED	200000 Cycles	Anti-Vandal, Illuminated	Quick Connect - 0.110" (2.8mm)	No Marking	IP40	30.1 mm	-25 °C	85 °C	100 mA	SPDT	24 V	30 V	On-Mom	Button, Flush, Round	Panel Mount, Front	Silver	1500000 Cycles
