C8001.41.07
ActivePrysmian Group

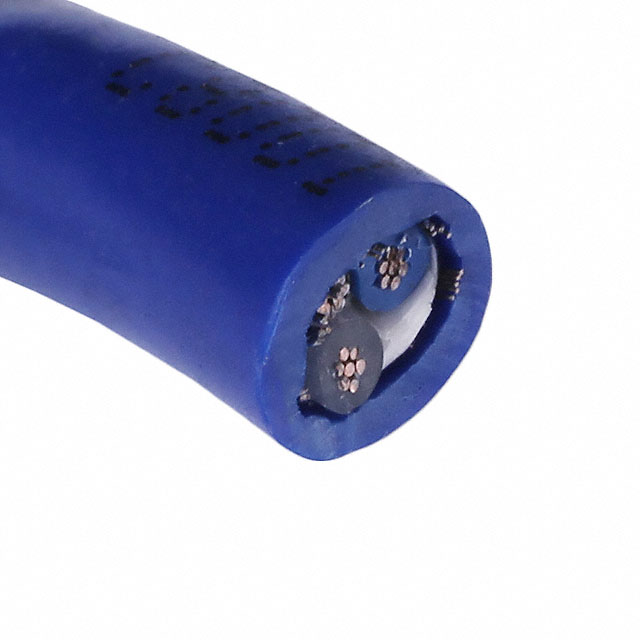

CABLE TWINAXIAL 20AWG 50'
Deep-Dive with AI
Search across all available documentation for this part.
C8001.41.07
ActivePrysmian Group
CABLE TWINAXIAL 20AWG 50'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C8001.41.07 |
|---|---|
| Cable Type | Twinaxial |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 28 AWG |
| Dielectric Diameter [diameter] | 0.02 in |
| Dielectric Diameter [diameter] | 0.51 mm |
| Dielectric Material | Solid Polyethylene (PE) |
| Impedance | 78 Ohms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Blue |
| Length | 15.24 m, 304.8 m |
| Length | 50 ft, 1000 ft |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Shield Coverage | 57 %, 100 % |
| Shield Material | Tinned, Flexfoil®, Copper |
| Shield Type | Foil, Braid |
| Usage | PLC, Data Transmission |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 109.05 | |
| 1 | $ 57.35 | |||
| 5 | $ 89.22 | |||
| 5 | $ 46.93 | |||
| 10 | $ 36.50 | |||
| 10 | $ 69.39 | |||
| 1000 | $ 0.53 | |||
| 2000 | $ 0.51 | |||
| 3000 | $ 0.49 | |||
| 5000 | $ 0.47 | |||
| 7000 | $ 0.46 | |||
| 10000 | $ 0.45 | |||
Description
General part information
C8001 Series
Twinaxial Cable 20 AWG 50.0' (15.24m) 78 Ohms
Documents
Technical documentation and resources
No documents available
