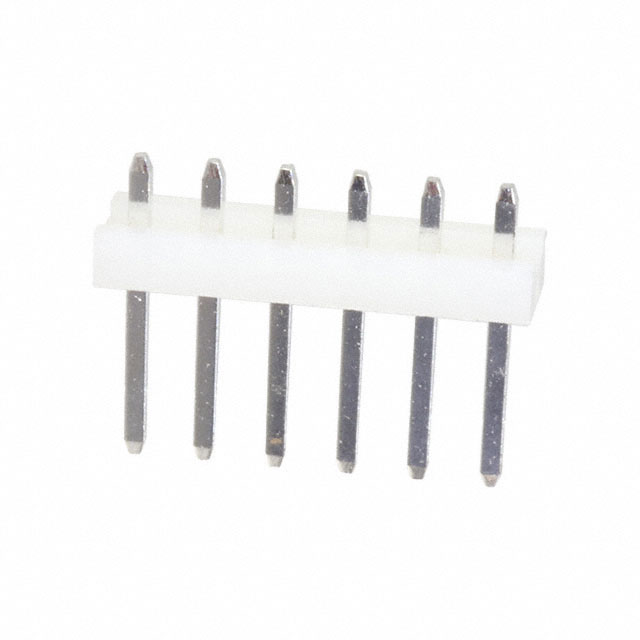

Specification	LHB-06-SA2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.413 in
Contact Length - Post	0.15 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7 A
Fastening Type	Push-Pull
Insulation Color	White
Insulation Height	0.126 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Overall Contact Length	0.689 in
Pitch - Mating	0.156 in
Shrouding	Unshrouded
Style	Board
Termination	Solder
Voltage Rating	250 V

LHB-06 Series

Part	Style	Pitch - Mating	Number of Positions	Contact Shape	Current Rating	Contact Finish - Post	Voltage Rating	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Contact Length - Post	Termination	Material Flammability Rating	Contact Finish - Mating	Shrouding	Contact Material	Contact Length - Mating	Mounting Type	Number of Positions Loaded	Insulation Color	Contact Type	Number of Rows	Insulation Material	Insulation Height	Overall Contact Length
Adam Tech LHB-06-SB1	Board Cable/Wire	0.156 in	6	Square	5 A	Tin	250 V	Friction Lock	85 °C	-25 °C	Header	0.134 in	Solder	UL94 V-2	Tin	Shrouded - 1 Wall	Brass	0.445 in	Right Angle Through Hole	All	White	Male Pin	1	Nylon 6/6 Polyamide (PA66)
Adam Tech LHB-06-SA2	Board	0.156 in	6	Square	7 A	Tin	250 V	Push-Pull	105 °C	-25 °C	Header	0.15 in	Solder	UL94 V-2	Tin	Unshrouded	Brass	0.413 in	Through Hole	All	White	Male Pin	1	Nylon 6/6 Polyamide (PA66)	0.126 in	0.689 in
Adam Tech LHB-06-SA1	Board Cable/Wire	0.156 in	6	Square	5 A	Tin	250 V	Friction Lock	85 °C	-25 °C	Header	0.145 in	Solder	UL94 V-2	Tin	Shrouded - 1 Wall	Brass	0.041 in	Through Hole	All	White	Male Pin	1	Nylon 6/6 Polyamide (PA66)	0.504 in	0.69 in
