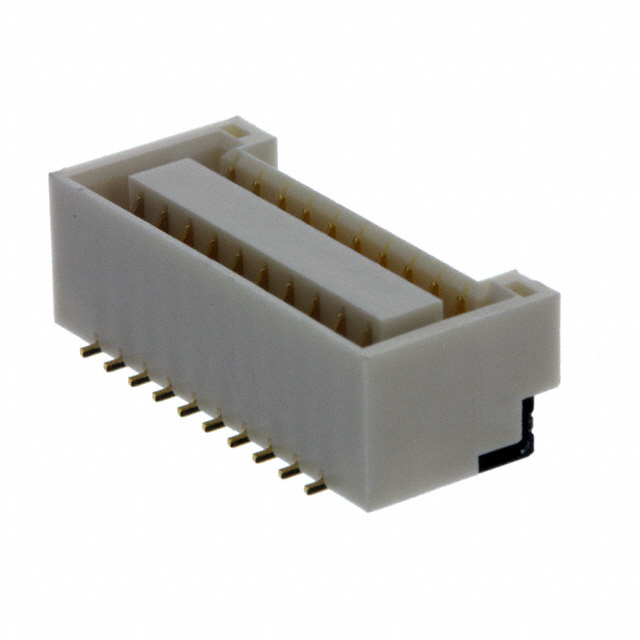

BM20B-GHDS-G-TF

Active

JST Sales America Inc.

CONN HEADER SMD 20POS 1.25MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD 20POS 1.25MM

Technical Specifications

Parameters and characteristics for this part

Specification	BM20B-GHDS-G-TF

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Contact Type	Outer Shroud Contact
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	8.5 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	1.25 mm
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 V

Part	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Mating	Termination	Number of Rows	Number of Positions Loaded	Shrouding	Features	Insulation Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Mated Stacking Heights	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Style	Number of Positions	Voltage Rating
JST Sales America Inc. BM20B-GHDS-G-TF	UL94 V-0	Locking Ramp	0.197 in	5 mm	Natural	Gold	Solder	2	All	Shrouded - 4 Wall	Solder Retention	Polybutylene Terephthalate (PBT)	Surface Mount	-25 °C	85 °C	Header	8.5 mm	Outer Shroud Contact	1.25 mm	0.049 in	Phosphor Bronze	Board to Cable/Wire	20	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 20 position 0.049" (1.25mm)
