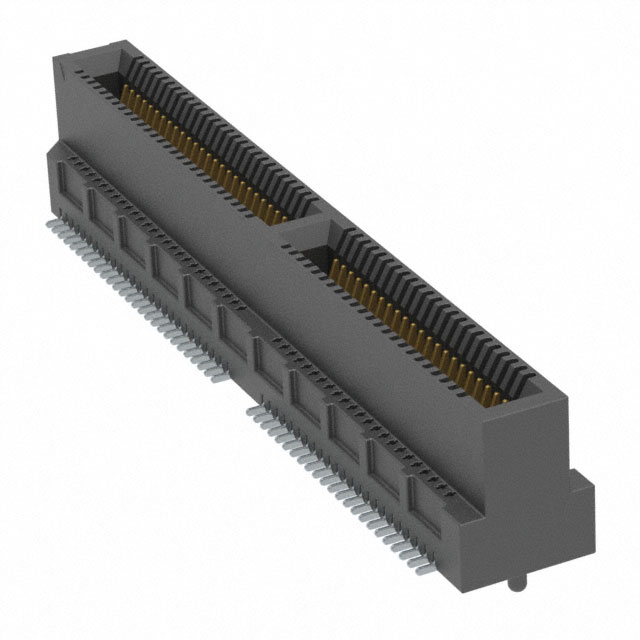

MEC8-150-01-S-DV-A

Active

Samtec Inc.

CONN EDGE DUAL FML 100POS 0.031

Deep-Dive with AI

Search across all available documentation for this part.

Documents0.80 mm Mini Edge Card Connector, Vertical Datasheet +2

MEC8-150-01-S-DV-A

Active

Samtec Inc.

CONN EDGE DUAL FML 100POS 0.031

Deep-Dive with AI

Documents0.80 mm Mini Edge Card Connector, Vertical Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MEC8-150-01-S-DV-A

Card Thickness	0.039 in
Card Thickness	1 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Hairpin Bellows
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

MEC8-150 Series

Part	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material - Insulation	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Material	Contact Type	Features	Number of Rows	Card Thickness	Card Thickness	Gender	Mounting Type	Read Out	Number of Positions
Samtec Inc. MEC8-150-02-L-DV-A-TR	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-02-S-DV-A	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-01-L-DV-A-K	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.039 in	1 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-01-L-D-RA1-TR	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.039 in	1 mm	Female	Surface Mount Right Angle	Dual	100
Samtec Inc. MEC8-150-02-S-DV-A-K	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-01-S-DV-A	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.039 in	1 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-02-S-DV-LC-K-TR	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-02-LM-DV-A-K	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-02-L-DV	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	10 Áin	0.25 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100
Samtec Inc. MEC8-150-02-SM-DV-A-K	Solder	Black	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Gold	0.8 mm	0.031 in	30 Áin	0.76 Ám	Non Specified - Dual Edge	Phosphor Bronze	Hairpin Bellows	Board Guide	2	0.062 in	1.57 mm	Female	Surface Mount	Dual	100

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.73

Description

General part information

MEC8-150 Series

100 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black

MEC8-150-01-S-DV-A

Deep-Dive with AI

MEC8-150-01-S-DV-A

Deep-Dive with AI

Technical Specifications

MEC8-150 Series

Pricing

Description

MEC8-150 Series

Documents

0.80 mm Mini Edge Card Connector, Vertical

Datasheet

MEC8 Series Other Related Documents 03

MEC8 Datasheet

MEC8-150 Series
