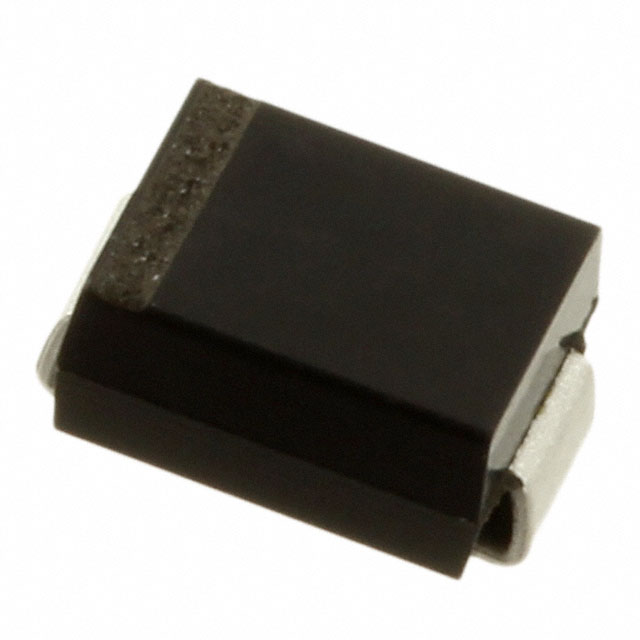

1SMB6.0CA TR13 PBFREE

Active

Central Semiconductor Corp

TVS DIODE 6VWM 10.3VC SMB

Search across all available documentation for this part.

Active

Central Semiconductor Corp

TVS DIODE 6VWM 10.3VC SMB

Technical Specifications

Parameters and characteristics for this part

Specification	1SMB6.0CA TR13 PBFREE

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	58.3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	SMB
Type	Zener
Voltage - Breakdown (Min) [Min]	6.67 V
Voltage - Clamping (Max) @ Ipp [Max]	10.3 V
Voltage - Reverse Standoff (Typ)	6 V

TVS DIODE 6VWM 10.3VC SMB

Part	Power Line Protection	Mounting Type	Type	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Current - Peak Pulse (10/1000µs)	Package / Case	Voltage - Breakdown (Min) [Min]	Applications	Power - Peak Pulse	Bidirectional Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
Central Semiconductor Corp 1SMB6.0CA TR13 PBFREE		Surface Mount	Zener	6 V	10.3 V	58.3 A	DO-214AA, SMB	6.67 V	General Purpose	600 W	1	150 °C	-65 °C	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10.3V Clamp 58.3A Ipp Tvs Diode Surface Mount SMB
