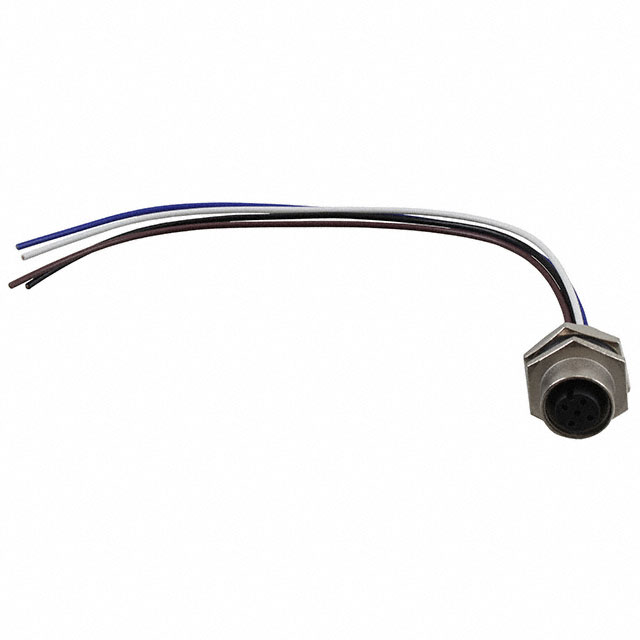

M12A-04PFFC-SH8B15

Active

Amphenol LTW

CONN RCPT FMAL 4P WIR LEAD 0.49'

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMAL 4P WIR LEAD 0.49'

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-04PFFC-SH8B15

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-4
Shielding	Shielded
Termination	Wire Leads
Voltage Rating	250 VAC

Part	Voltage Rating	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Color	Number of Positions	Mounting Feature	Orientation	Contact Finish - Mating	Shell Material	Ingress Protection	Current Rating (Amps)	Shell Finish	Termination	Shielding	Contact Material
Amphenol LTW M12A-04PFFC-SH8B15	250 VAC	Metal	Receptacle Female Sockets	-25 °C	85 °C	M12-4	Polyamide (PA) Nylon Glass Filled	Silver	4	Bulkhead - Rear Side Nut	A	Gold	Zinc Alloy	IP68 IP69K	4 A	Nickel	Wire Leads	Shielded	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Wire Leads
