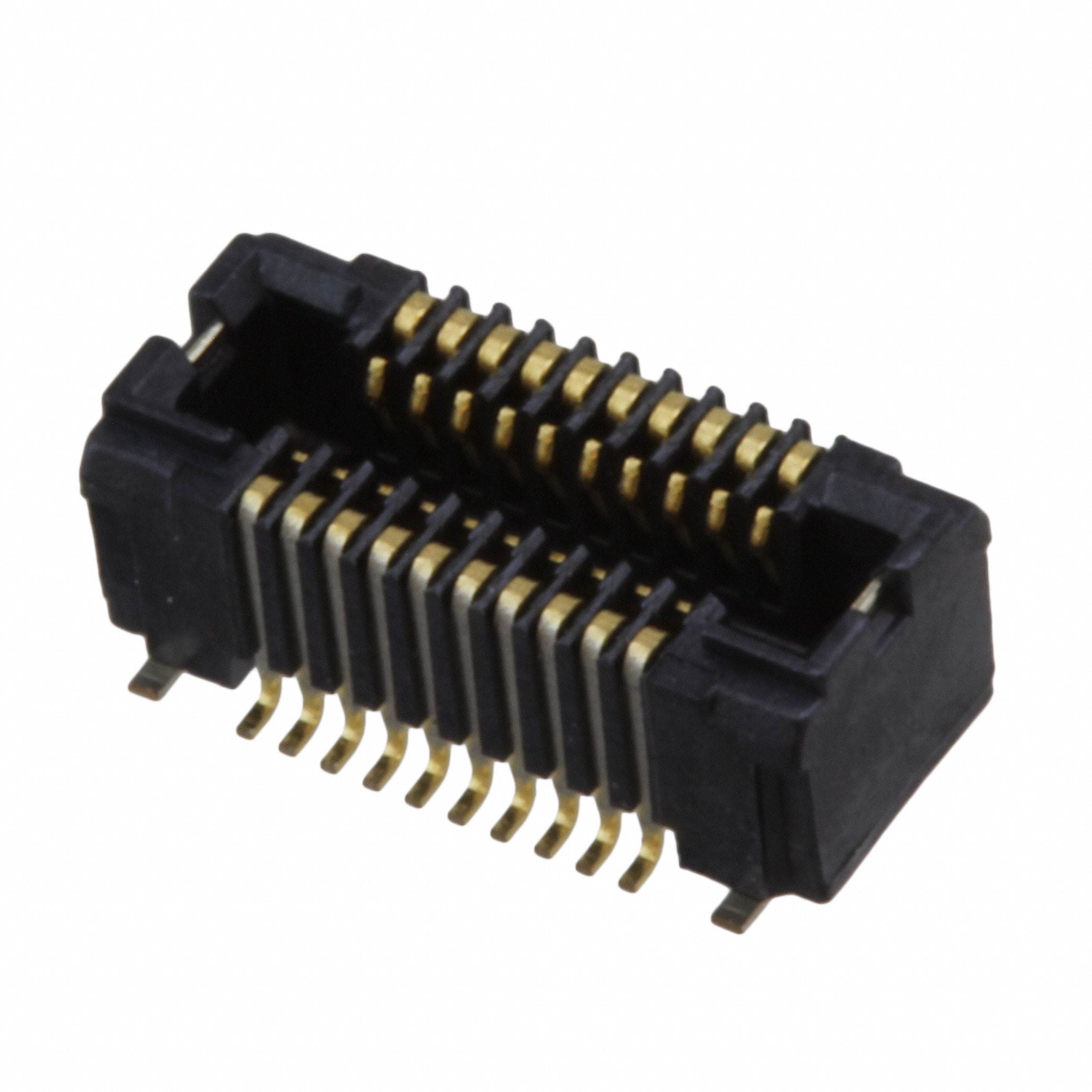

AXT320224

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN SOCKET 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT320224

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	2.45 mm
Height Above Board [z]	0.096 in
Mated Stacking Heights [z]	3 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Features	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]	Mounting Type	Number of Rows	Contact Finish	Mated Stacking Heights
Panasonic Electric Works AXT320224	0.016 in	0.4 mm	Outer Shroud Contacts Socket	20	Solder Retention	2.45 mm	0.096 in	2.5 mm 3 mm	Surface Mount	2	Gold
Panasonic Electric Works AXT320154	0.016 in	0.4 mm	Outer Shroud Contacts Socket	20	Board Guide Solder Retention	1.45 mm	0.057 in		Surface Mount	2	Gold	1.5 mm
Panasonic Electric Works AXT320214	0.016 in	0.4 mm	Outer Shroud Contacts Socket	20	Board Guide Solder Retention	2.45 mm	0.096 in	2.5 mm 3 mm	Surface Mount	2	Gold
