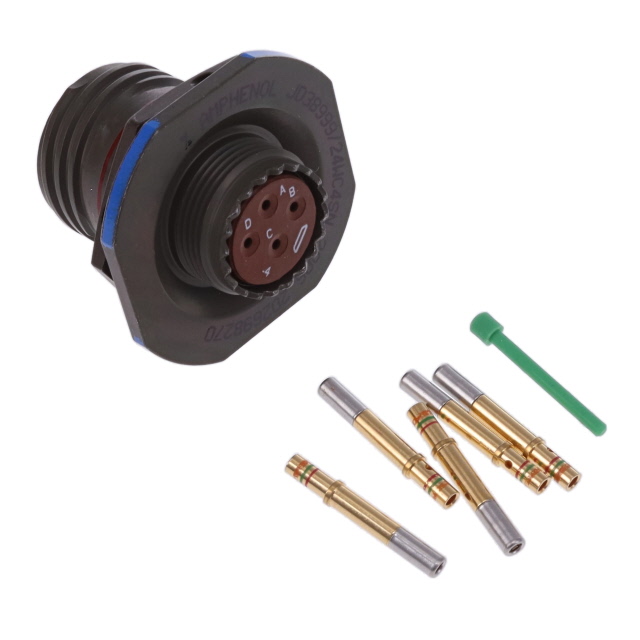

D38999/24WC4SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24WC4SN

Active

Amphenol Aerospace Operations

CONN RCPT FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24WC4SN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert	13-4
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/24WC Series

Part	Primary Material	Number of Positions	Contact Finish - Mating	Connector Type	Shell Size, MIL	Mounting Feature	Orientation	Shell Material	Shell Finish	Qualification	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Shell Size - Insert	Termination	Applications	Grade	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Color	Insert Material	Contact Shape	Housing Color	Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Note	Contact Type	Contact Size
Amphenol Aerospace Operations D38999/24WC4SN	Metal	4	Gold	Receptacle Female Sockets	C	Bulkhead - Front Side Nut	N	Aluminum	Olive Drab Cadmium	MIL-DTL-38999 Series III	Shielded	-65 ░C	347 °F	Copper Alloy	13-4	Crimp	Aerospace Aviation Marine Military	Military	1.27 µm	50 µin	Environment Resistant	Olive Drab
Amphenol Aerospace Operations D38999/24WC8SN	Metal	8	Gold	Receptacle Female Sockets	C	Bulkhead - Front Side Nut	N	Aluminum	Olive Drab Cadmium	MIL-DTL-38999 Series III	Shielded	-65 ░C	347 °F	Copper Alloy	13-8	Crimp	Aerospace Aviation Marine Military	Military	1.27 µm	50 µin	Environment Resistant	Olive Drab
Amphenol Aerospace Operations D38999/24WC35PNLC	Metal	22 positions		Receptacle Housing	C	Bulkhead - Front Side Nut	N	Aluminum	Cadmium	MIL-DTL-38999 Series III	Shielded	-65 ░C	347 °F					Military			Environment Resistant		Thermoplastic	Circular	Olive Drab	For Male Pins	35	13	Contacts Not Included	Crimp	22D
Amphenol Aerospace Operations D38999/24WC4HN	Metal	4	Gold	Male Pins Receptacle	C	Bulkhead - Front Side Nut	N	Aluminum	Olive Drab Cadmium	MIL-DTL-38999 Series III	Shielded	-65 ░C	347 °F	Copper Alloy	13-4	Crimp	Aerospace Aviation Military	Military	2.54 çm	100 çin	Environment Resistant	Olive Drab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 53.00
		10	$ 51.30
		25	$ 49.69
		50	$ 48.93
		100	$ 46.09
		250	$ 45.43
		500	$ 43.57
		1000	$ 42.41
	Bulk	1	$ 344.88
		10	$ 271.09
		25	$ 247.84

Description

General part information

D38999/24WC Series

4 Position Circular Connector Receptacle, Female Sockets Crimp
