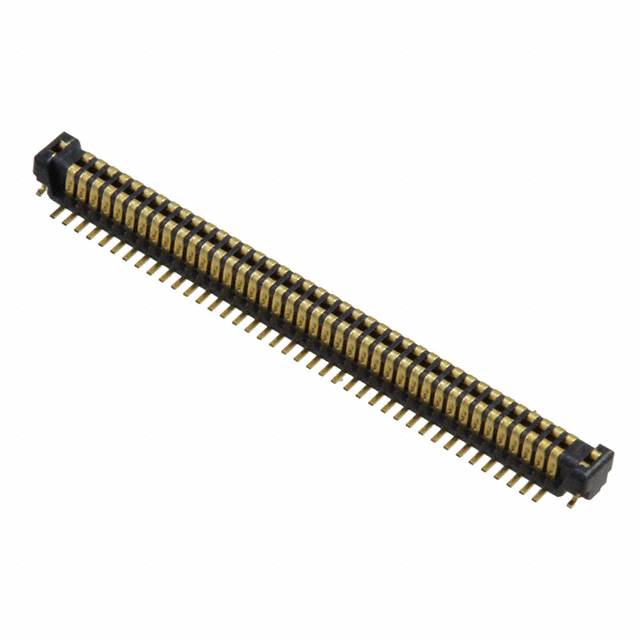

AXT480124

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT480124

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Features	Mounting Type	Contact Finish	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]
Panasonic Electric Works AXT480364	3 mm	Header Center Strip Contacts	2.23 mm	0.088 "	Solder Retention	Surface Mount	Gold	2	80	0.016 in	0.4 mm
Panasonic Electric Works AXT480124	1.5 mm 2.5 mm	Header Center Strip Contacts	1.25 mm	0.049 in	Solder Retention	Surface Mount	Gold	2	80	0.016 in	0.4 mm
Panasonic Electric Works AXT480324	3 mm	Header Center Strip Contacts	2.23 mm	0.088 "	Solder Retention	Surface Mount	Gold	2	80	0.016 in	0.4 mm
Panasonic Electric Works AXT480314	3 mm	Header Center Strip Contacts	2.23 mm	0.088 "	Board Guide Solder Retention	Surface Mount	Gold	2	80	0.016 in	0.4 mm
Panasonic Electric Works AXT480154	1.5 mm 2.5 mm	Header Center Strip Contacts	1.25 mm	0.049 in	Board Guide Solder Retention	Surface Mount	Gold	2	80	0.016 in	0.4 mm
Panasonic Electric Works AXT480114	1.5 mm 2.5 mm	Header Center Strip Contacts	1.25 mm	0.049 in	Board Guide Solder Retention	Surface Mount	Gold	2	80	0.016 in	0.4 mm
