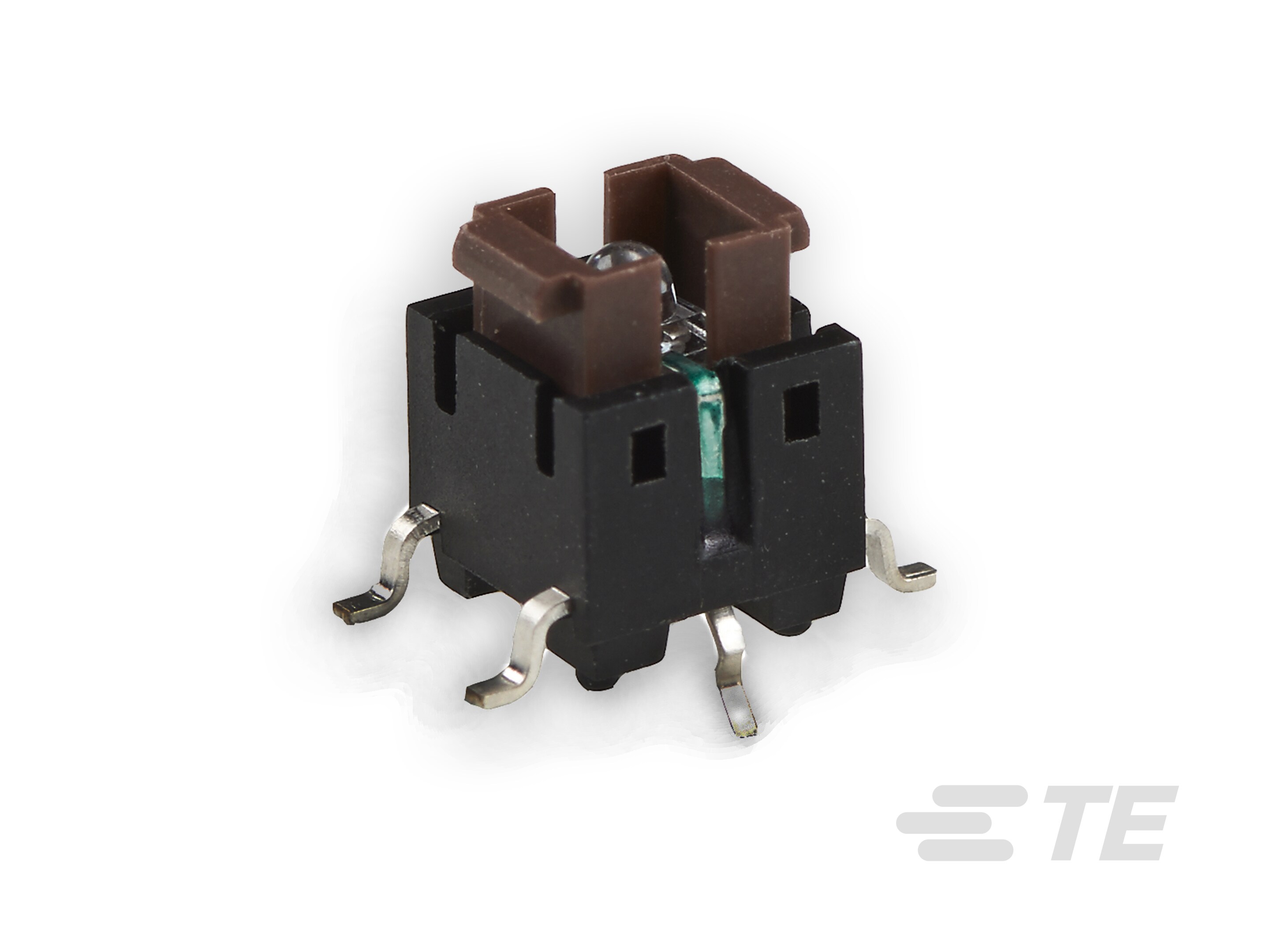

Specification	FSMIJM62AG04

Actuator Material	Thermoplastic
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Color	Yellow, Green
Contact Rating (Current)	0.05 A
Features	Tactile/Audible Feedback
Illumination	Illuminated
Illumination Type	LED
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Surface Mount
Operating Force	160 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Outline Length	6 mm
Outline Width	6 mm
Switch Function	Off-Mom
Switch Travel	0.2 mm
Termination Style	Gull Wing

ALCOSWITCH FSMIJ Series

...

Part	Mechanical Life (Cycles)	Switch Travel	Actuator Material	Mounting Type	Actuator Type	Illumination Type	Color	Features	Circuit	Operating Force	Operating Temperature (Max)	Operating Temperature (Min)	Illumination	Contact Rating (Current)	Actuator Orientation	Outline Width	Outline Length	Termination Style	Switch Function
TE Connectivity AMP Connectors FSMIJM63AW04	200000 Cycles	0.2 mm	Thermoplastic	Surface Mount	Plunger for Cap	LED	White	Tactile/Audible Feedback	SPST-NO	260 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	Gull Wing	Off-Mom
TE Connectivity AMP Connectors FSMIJ65BR04				Through Hole	Plunger for Cap	LED	Red	Tactile/Audible Feedback	SPST-NO	520 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	PC Pin	Off-Mom
TE Connectivity AMP Connectors FSMIJM62APG04				Surface Mount	Plunger for Cap	LED	Green	Tactile/Audible Feedback	SPST-NO	160 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	Gull Wing	Off-Mom
TE Connectivity AMP Connectors FSMIJM62BG04				Surface Mount	Plunger for Cap	LED	Green Yellow	Tactile/Audible Feedback	SPST-NO	160 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	Gull Wing	Off-Mom
TE Connectivity AMP Connectors FSMIJ63AW04	200000 Cycles	0.2 mm	Thermoplastic	Through Hole	Plunger for Cap	LED	White	Tactile/Audible Feedback	SPST-NO	260 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	PC Pin	Off-Mom
TE Connectivity AMP Connectors FSMIJM62BA04	500000 Cycles	0.2 mm	Thermoplastic	Surface Mount	Plunger for Cap	LED	Orange	Tactile/Audible Feedback	SPST-NO	160 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	Gull Wing	Off-Mom
TE Connectivity AMP Connectors FSMIJM62APG04	500000 Cycles	0.2 mm	Thermoplastic	Surface Mount	Plunger for Cap	LED	Green	Tactile/Audible Feedback	SPST-NO	160 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	Gull Wing	Off-Mom
TE Connectivity AMP Connectors FSMIJ62BG04				Through Hole	Plunger for Cap	LED	Green Yellow	Tactile/Audible Feedback	SPST-NO	160 gf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	PC Pin	Off-Mom
TE Connectivity AMP Connectors FSMIJM61AA04				Surface Mount	Plunger for Cap	LED	Orange	Tactile/Audible Feedback	SPST-NO	0.1 kgf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	Gull Wing	Off-Mom
TE Connectivity AMP Connectors FSMIJ61BO04	500000 Cycles	0.2 mm	Thermoplastic	Through Hole	Plunger for Cap	LED	Orange Red	Tactile/Audible Feedback	SPST-NO	0.1 kgf	70 °C	-25 °C	Illuminated	0.05 A	Top Actuated	6 mm	6 mm	PC Pin	Off-Mom
