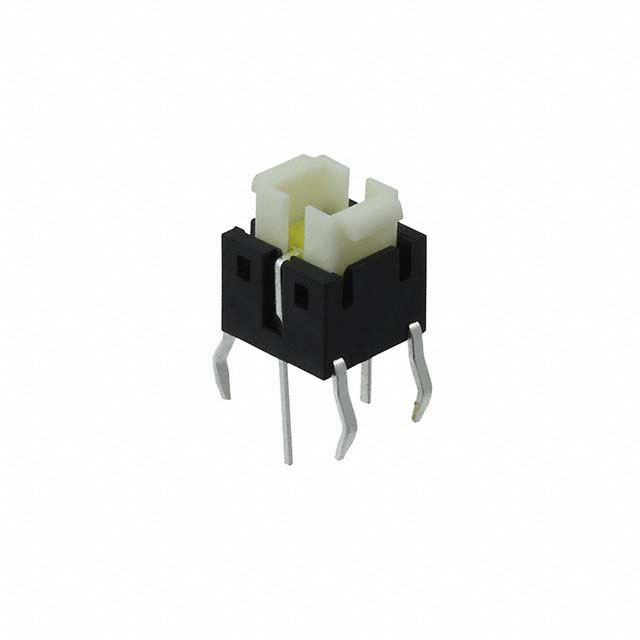

FSMIJ63AW04
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FSMIJ63AW04
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FSMIJ63AW04 |
|---|---|
| Actuator Material | Thermoplastic |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Tactile/Audible Feedback |
| Illumination | Illuminated |
| Illumination Type, Color | White, LED |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.2 mm |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.82 | |
| 10 | $ 4.62 | |||
| 75 | $ 3.92 | |||
| 150 | $ 3.66 | |||
| 300 | $ 3.32 | |||
| 525 | $ 3.08 | |||
| 1050 | $ 2.85 | |||
| 2550 | $ 2.59 | |||
Description
General part information
FSMIJ63 Series
Tactile Switch SPST-NO Top Actuated Through Hole
