8P1P003210GRF01

Active

MH Connectors

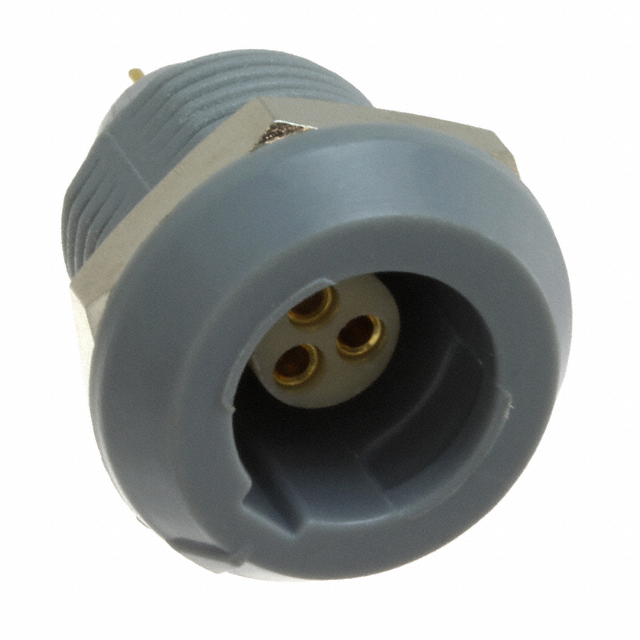

CONN RCPT FMALE 3POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8P1P003210GRF01

Active

MH Connectors

CONN RCPT FMALE 3POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8P1P003210GRF01

Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	7 µin
Contact Finish Thickness - Mating	0.178 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate (PC), Polyacrylonitrile Butadiene Styrene (ABS)
Shielding	Unshielded
Termination	Solder
Voltage Rating	500 V

8P1P003 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Current Rating (Amps)	Color	Insert Material	Fastening Type	Connector Type	Ingress Protection	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Termination	Contact Finish - Mating	Voltage Rating	Mounting Feature	Shell Material	Shielding	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Features
MH Connectors 8P1P003210ARBR1	-20 C	120 °C	Keyed	Plastic	10 A	Blue Gray	Polyphenylene Sulfide (PPS)	Push-Pull	Receptacle Female Sockets	IP50	Copper Alloy	7 µin	0.178 µm	Panel Mount Right Angle Through Hole	Solder	Gold	500 V	Bulkhead - Front Side Nut	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded
MH Connectors 8P1P003210GRF01	-20 C	120 °C	Keyed	Plastic	10 A	Gray	Polyphenylene Sulfide (PPS)	Push-Pull	Receptacle Female Sockets	IP50	Copper Alloy	7 µin	0.178 µm	Panel Mount Through Hole	Solder	Gold	500 V	Bulkhead - Rear Side Nut	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded
MH Connectors 8P1P00317BNL521	-20 C	120 °C	Keyed	Plastic	10 A		Polyphenylene Sulfide (PPS)	Push-Pull	Male Pins Plug	IP50	Copper Alloy	7 µin	0.178 µm	Free Hanging (In-Line)		Gold	500 V		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded	4 mm	5 mm	0.157 in	0.197 in	Backshell Strain Relief
MH Connectors 8P1P003210NRB01	-20 C	120 °C	Keyed	Plastic	10 A		Polyphenylene Sulfide (PPS)	Push-Pull	Receptacle Female Sockets	IP50	Copper Alloy	7 µin	0.178 µm	Panel Mount Through Hole	Solder	Gold	500 V	Bulkhead - Front Side Nut	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded
MH Connectors 8P1P003200RRB01	-20 C	120 °C	Keyed	Plastic	10 A	Gray Red	Polyphenylene Sulfide (PPS)	Push-Pull	Receptacle Female Sockets	IP50	Copper Alloy	7 µin	0.178 µm			Gold	500 V	Bulkhead - Front Side Nut	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded
MH Connectors 8P1P00317NVL621	-20 C	120 °C	Keyed	Plastic	10 A	Gray Green	Polyphenylene Sulfide (PPS)	Push-Pull	Male Pins Plug	IP50	Copper Alloy	7 µin	0.178 µm	Free Hanging (In-Line)		Gold	500 V		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded	5 mm	6 mm	0.197 in	0.236 in
MH Connectors 8P1P003210NRBR1	-20 C	120 °C	Keyed	Plastic	10 A		Polyphenylene Sulfide (PPS)	Push-Pull	Receptacle Female Sockets	IP50	Copper Alloy	7 µin	0.178 µm	Panel Mount Right Angle Through Hole	Solder	Gold	500 V	Bulkhead - Front Side Nut	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded
MH Connectors 8P1P003200VRB01	-20 C	120 °C	Keyed	Plastic	10 A	Gray Green	Polyphenylene Sulfide (PPS)	Push-Pull	Receptacle Female Sockets	IP50	Copper Alloy	7 µin	0.178 µm			Gold	500 V	Bulkhead - Front Side Nut	Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded
MH Connectors 8P1P00317NRL521	-20 C	120 °C	Keyed	Plastic	10 A	Gray Red	Polyphenylene Sulfide (PPS)	Push-Pull	Male Pins Plug	IP50	Copper Alloy	7 µin	0.178 µm	Free Hanging (In-Line)		Gold	500 V		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded	4 mm	5 mm	0.157 in	0.197 in
MH Connectors 8P1P00317NJL621	-20 C	120 °C	Keyed	Plastic	10 A	Gray Yellow	Polyphenylene Sulfide (PPS)	Push-Pull	Male Pins Plug	IP50	Copper Alloy	7 µin	0.178 µm	Free Hanging (In-Line)		Gold	500 V		Polyacrylonitrile Butadiene Styrene (ABS) Polycarbonate (PC)	Unshielded	5 mm	6 mm	0.197 in	0.236 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	20	$ 9.78

Description

General part information

8P1P003 Series

3 Position Circular Connector Receptacle, Female Sockets Solder
