Specification	10114826-10010LF

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.049 in

10114826 Series

Part	Note	Contact Type	Number of Rows	Insulation Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Termination	Pitch	Connector Type	Color	Mounting Type	Number of Positions
Amphenol ICC (FCI) 10114826-00010LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	10
Amphenol ICC (FCI) 10114826-10010LF		Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Black	Free Hanging (In-Line)	10
Amphenol ICC (FCI) 10114826-00006LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	6

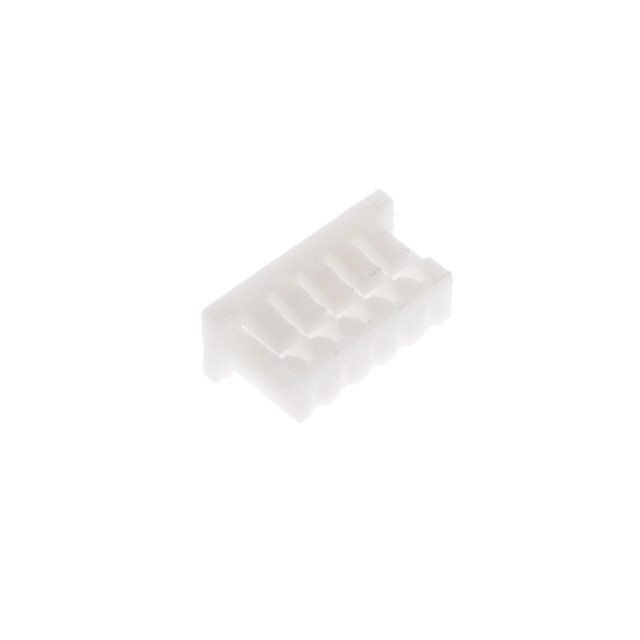

Amphenol ICC (FCI) 10114826-00005LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	5
Amphenol ICC (FCI) 10114826-00013LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	13

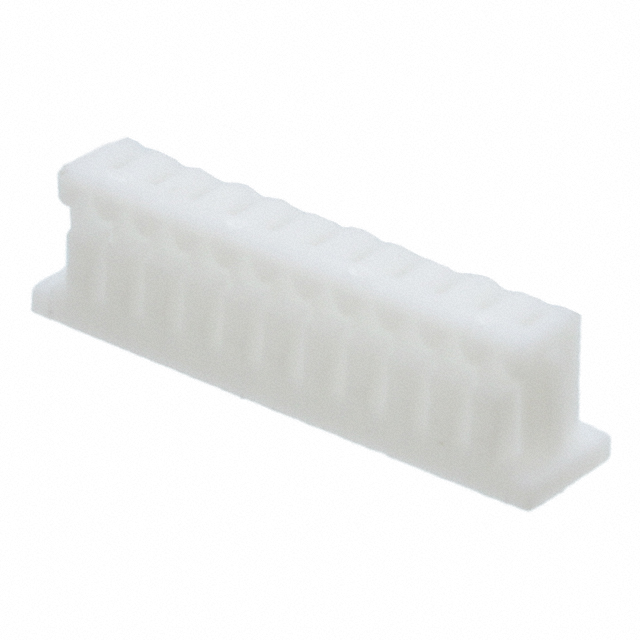

Amphenol ICC (FCI) 10114826-00011LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	11
Amphenol ICC (FCI) 10114826-00009LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	9
Amphenol ICC (FCI) 10114826-00004LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	4
Amphenol ICC (FCI) 10114826-00008LF	Contacts Not Included	Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Natural	Free Hanging (In-Line)	8
Amphenol ICC (FCI) 10114826-10008LF		Female Socket	1	Nylon 6/6 Polyamide (PA66)	-40 °C	105 °C	Crimp	0.049 in	Receptacle	Black	Free Hanging (In-Line)	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

10114826-10010LF | Datasheet
