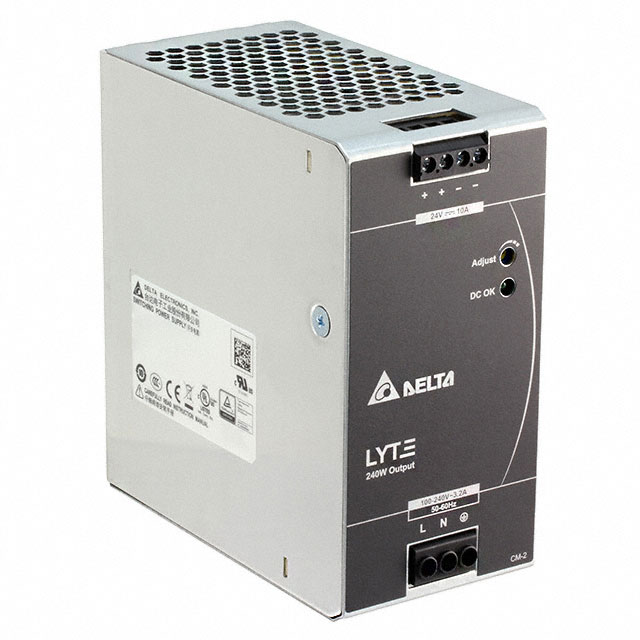

DRL-24V240W1AA

Active

Delta Electronics

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	DRL-24V240W1AA

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CB, CCC, CE
Current - Output (Max) [Max]	10 A
Efficiency	90 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	240 W
Size / Dimension [x]	117.6 mm
Size / Dimension [x]	4.63 in
Size / Dimension [y]	2.36 "
Size / Dimension [y]	60 mm
Size / Dimension [z]	4.87 in
Size / Dimension [z]	123.6 mm
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Number of Outputs	Current - Output (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Applications	Efficiency	Voltage - Output 1	Features
Delta Electronics DRL-24V240W1AA	85 VAC	264 VAC	AC	2.36 "	60 mm	117.6 mm	4.87 in	123.6 mm	4.63 in	3000 V	1	10 A	240 W	-20 °C	70 °C	CB CCC CE cURus TUV	ITE (Commercial)	90 %	24 V	Adjustable Output IP20 Load Sharing PFC Universal Input
Delta Electronics DRL-24V480W1AA	85 VAC	264 VAC	AC	3.37 "	85.5 mm	127.7 mm	4.87 in	123.6 mm	5.03 in	3000 V	1	20 A	480 W	-20 °C	70 °C	CB CCC CE cULus cURus TUV	ITE (Commercial)	88 %	24 V	Adjustable Output IP20 Load Sharing PFC Universal Input
