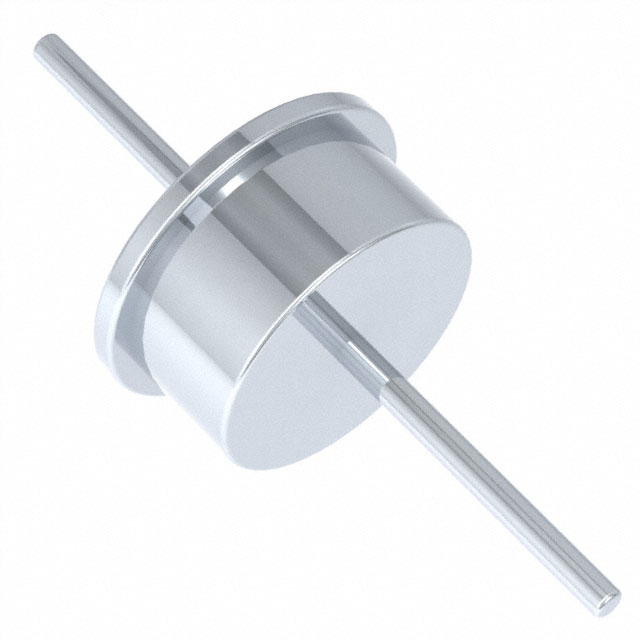

SFSUC5000103MX0

Active

Knowles Syfer

CAP FEEDTHRU 10000PF 500V AXIAL

Search across all available documentation for this part.

Active

Knowles Syfer

CAP FEEDTHRU 10000PF 500V AXIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

CAP FEEDTHRU 10000PF 500V AXIAL

Part	Tolerance	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Package / Case	Current	Capacitance	Temperature Coefficient	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]
Knowles Syfer SFSUC5000103MX0	20 %	41 dB	-55 °C	125 °C	500 V	Axial	10 A	10000 pF	X7R	0.256 in	3 mm	6.5 mm	0.118 "
Knowles Syfer SFSUC0500474MX0	20 %		-55 °C	125 °C	50 VDC	Axial	10 A	0.47 µF	X7R	0.256 in	3 mm	6.5 mm	0.118 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10000 pF Feed Through Capacitor 500V 10 A Axial

Technical documentation and resources

No documents available
