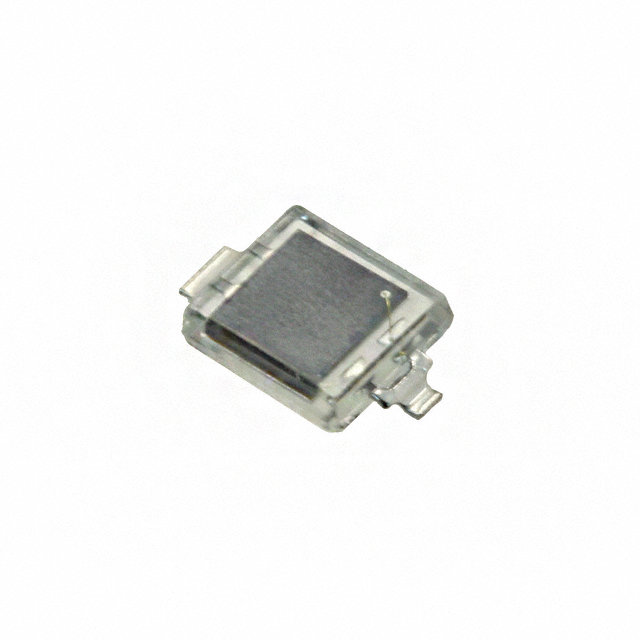

PD70-01C/TR7
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM 2SMD GW
Deep-Dive with AI
Search across all available documentation for this part.
PD70-01C/TR7
ActiveEverlight Electronics Co Ltd
SENSOR PHOTODIODE 940NM 2SMD GW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PD70-01C/TR7 |
|---|---|
| Diode Type | PIN |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 2-SMD, Gull Wing |
| Response Time | 50 ns |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 32 V |
| Wavelength | 940 nm |
PD70-01 Series
| Part | Diode Type | Spectral Range [Max] [x] | Spectral Range [Min] [x] | Package / Case | Mounting Type | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Wavelength | Voltage - DC Reverse (Vr) (Max) [Max] | Spectral Range [Min] [custom] | Spectral Range [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Everlight Electronics Co Ltd | PIN | 1100 nm | 400 nm | 2-SMD Gull Wing | Surface Mount | 50 ns | -25 °C | 85 °C | 940 nm | 32 V | ||
Everlight Electronics Co Ltd | PIN | 2-SMD Gull Wing | Surface Mount | 50 ns | -25 °C | 85 °C | 940 nm | 32 V | 730 nm | 1100 nm | ||
Everlight Electronics Co Ltd | PIN | 2-SMD Z-Bend | Surface Mount | 50 ns | -25 °C | 85 °C | 940 nm | 32 V | 730 nm | 1100 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.63 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.63 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.45 | |||
| Tape & Reel (TR) | 1000 | $ 0.54 | ||
| 2000 | $ 0.52 | |||
| 3000 | $ 0.50 | |||
| 5000 | $ 0.48 | |||
| 7000 | $ 0.48 | |||
| 10000 | $ 0.47 | |||
Description
General part information
PD70-01 Series
Photodiode 940nm 50ns 2-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
