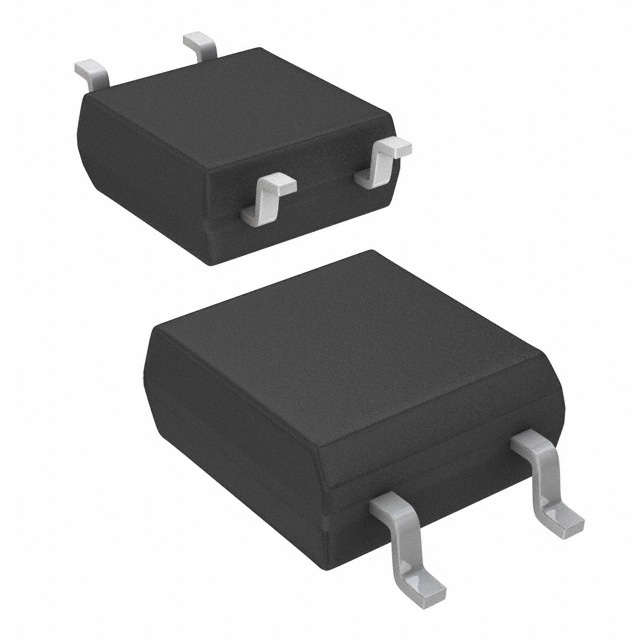

VOM3052-X001T

Unknown

Vishay Semiconductor Opto Division

OPTOISOLATOR 3.75KV TRIAC 4SOP

Search across all available documentation for this part.

Unknown

Vishay Semiconductor Opto Division

OPTOISOLATOR 3.75KV TRIAC 4SOP

Technical Specifications

Parameters and characteristics for this part

Specification	VOM3052-X001T

Approval Agency	CQC, VDE, cUR, UR
Current - DC Forward (If) (Max) [Max]	60 mA
Current - Hold (Ih)	300 µA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	70 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	4-SMD, Gull Wing
Static dV/dt (Min) [Min]	1.5 kV/µs
Supplier Device Package	4-SOP
Voltage - Isolation	3750 Vrms
Voltage - Off State	600 V
Zero Crossing Circuit	False

OPTOISOLATOR 3.75KV TRIAC 4SOP

Part	Number of Channels	Voltage - Isolation	Static dV/dt (Min) [Min]	Current - On State (It (RMS)) (Max)	Current - Hold (Ih)	Current - DC Forward (If) (Max) [Max]	Approval Agency	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Off State	Zero Crossing Circuit	Current - LED Trigger (Ift) (Max) [Max]	Supplier Device Package	Package / Case
Vishay Semiconductor Opto Division VOM3052-X001T	1	3750 Vrms	1.5 kV/µs	70 mA	300 µA	60 mA	CQC, cUR, UR, VDE	Triac	100 °C	-40 °C	Surface Mount	600 V		10 mA	4-SOP	4-SMD, Gull Wing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Triac Output 3750Vrms 1 Channel 4-SOP
