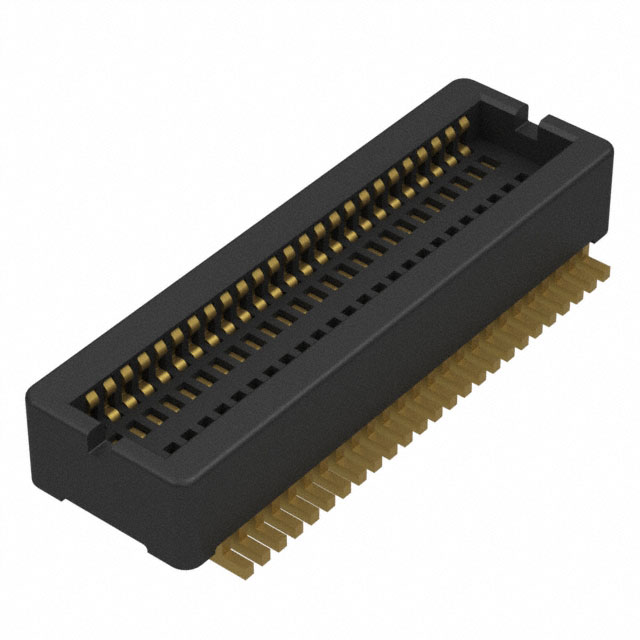

AC01S050WA2R500
ActiveJAE Electronics
CONN RCPT 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AC01S050WA2R500
ActiveJAE Electronics
CONN RCPT 50POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AC01S050WA2R500 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.108 in |
| Height Above Board | 2.75 mm |
| Mated Stacking Heights | 3 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.59 | |
| 10 | $ 6.87 | |||
| 25 | $ 6.49 | |||
| 50 | $ 6.33 | |||
| 100 | $ 6.01 | |||
| 250 | $ 5.38 | |||
| Digi-Reel® | 1 | $ 7.59 | ||
| 10 | $ 6.87 | |||
| 25 | $ 6.49 | |||
| 50 | $ 6.33 | |||
| 100 | $ 6.01 | |||
| 250 | $ 5.38 | |||
| Tape & Reel (TR) | 500 | $ 3.92 | ||
Description
General part information
AC01S050 Series
50 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
