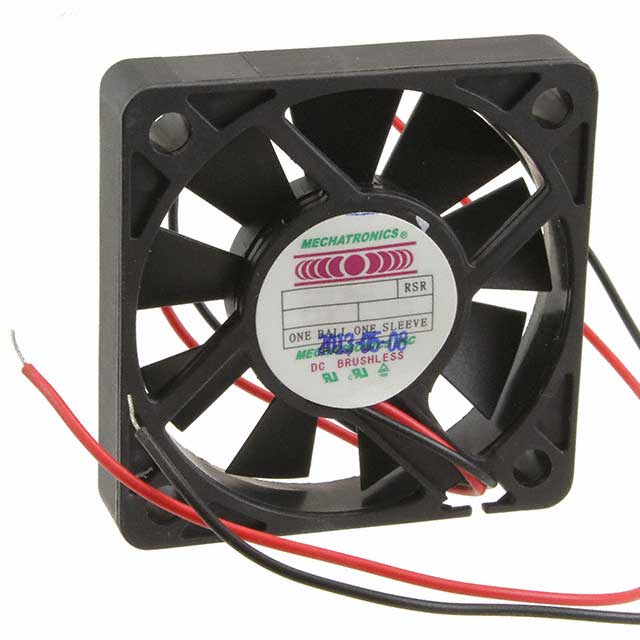

M5210E05C-RSR

Active

Mechatronics Bearing Group

FAN AXIAL 52X10MM 5VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 52X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	M5210E05C-RSR

Air Flow	0.316 m³/min
Air Flow	11.3 CFM
Approval Agency	cUL, TUV, UL
Bearing Type	1 Ball/1 Sleeve
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	28 dB
RPM	6000 RPM
Size / Dimension [x]	52 mm
Size / Dimension [z]	52 mm
Termination	2 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	3 V
Weight	0.044 lb
Weight	19.96 g
Width [y]	10 mm

Part	Termination	Noise	Voltage Range [Max]	Voltage Range [Min]	Approval Agency	Voltage - Rated	Bearing Type	Weight	Weight	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Fan Type	Material - Blade	RPM	Air Flow	Air Flow
Mechatronics Bearing Group M5210E05C-RSR	2 Wire Leads	28 dB	6 VDC	3 V	cUL TUV UL	5 V	1 Ball/1 Sleeve	0.044 lb	19.96 g	150 mA	52 mm	52 mm	10 mm	Tubeaxial	Polybutylene Terephthalate (PBT)	6000 RPM	0.316 m³/min	11.3 CFM
Mechatronics Bearing Group M5210E12C-RS	2 Wire Leads	28 dB	13.8 VDC	7 V	cUL TUV UL	12 VDC	1 Ball/1 Sleeve	0.044 lb	19.96 g	120 mA	52 mm	52 mm	10 mm	Tubeaxial	Polybutylene Terephthalate (PBT)	6000 RPM	0.316 m³/min	11.3 CFM
Mechatronics Bearing Group M5210E12B-RSR	2 Wire Leads	28 dB	13.8 VDC	7 V	cUL TUV UL	12 VDC	Ball	0.044 lb	19.96 g	120 mA	52 mm	52 mm	10 mm	Tubeaxial	Polybutylene Terephthalate (PBT)	6000 RPM	0.316 m³/min	11.3 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 52mm L x 52mm H 1 Ball/1 Sleeve 11.3 CFM (0.316m³/min) 2 Wire Leads
