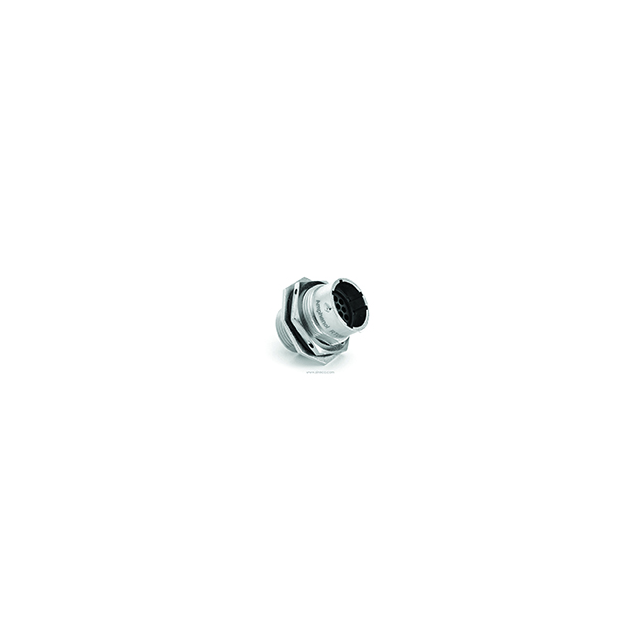

RT0W71419PNH03

Active

Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, MALE WITH SI

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet

RT0W71419PNH03

Active

Amphenol Sine Systems Corp

JAM NUT RECEPTACLE, MALE WITH SI

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W71419PNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Includes	1 O-Ring, 1 Gasket, 1 Nut, 1 Connector
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Shielded
Type	For Male Pins

RT0W71419 Series

Part	Note	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Insert Material	Number of Positions	Features	Contact Size	Includes	Orientation	Type	Contact Type	Connector Type	Fastening Type	Ingress Protection	Shell Finish	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shielding	Material Flammability Rating	Housing Color	Shell Material	Termination	Contact Finish Thickness - Mating	Voltage Rating	Color	Primary Material	Current Rating (Amps)	Contact Finish - Mating
Amphenol Sine Systems Corp RT0W71419PNHEC	Contacts Not Included	Circular	-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	19	Backshell	20	1 Connector 1 Nut 1 O-Ring	N	For Male Pins	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419PNH03	Contacts Not Included	Circular	-40 °C	125 °C	Bulkhead - Front Side Nut	Thermoplastic	19		20	1 Connector 1 Gasket 1 Nut 1 O-Ring	N	For Male Pins	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419PNHEC03
Amphenol Sine Systems Corp RT0W71419SNH	Contacts Not Included	Circular	-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	19		20		N	For Female Sockets	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419PNH	Contacts Not Included	Circular	-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	19		20		N	For Male Pins	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419SNH-K			-40 °C	105 ░C	Bulkhead - Front Side Nut		19				N			Receptacle Female Sockets	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14				Zinc Die Cast	Crimp	Flash	150 VAC	Silver	Metal	7.5 A	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.59
		10	$ 15.80
		25	$ 14.81
		50	$ 14.75

Description

General part information

RT0W71419 Series

19 Position Circular Connector Receptacle Housing Panel Mount

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet
