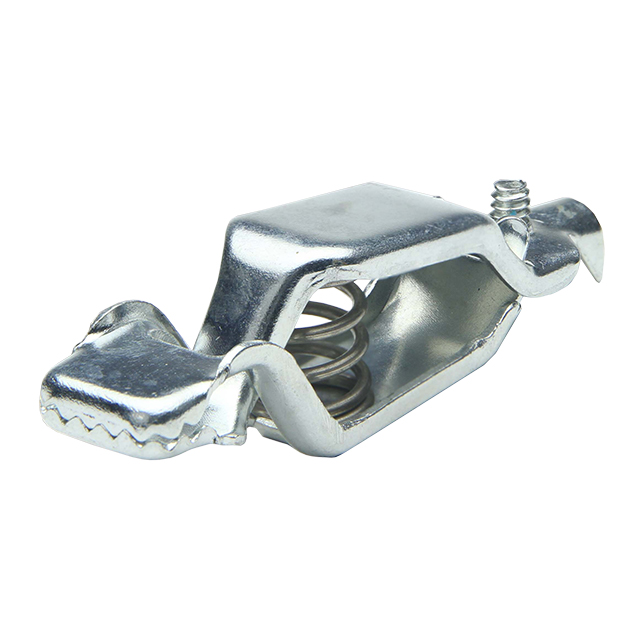

CTM-25

Active

Cal Test Electronics

HD CLIP STEEL NON-INSULATED 40A

Search across all available documentation for this part.

Active

Cal Test Electronics

HD CLIP STEEL NON-INSULATED 40A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.50

General part information

40 A Non-Insulated Heavy Duty Test Clip Steel 0.750" (19.05mm) 3/4"

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CTM-25	CTM Series

Accessory Type	-	Insulator, Green, Insulator, Black, Insulator, Red, Insulator, White, Insulator, Blue, Insulator, Yellow
Color	Natural	Red, Natural, Blue, Green, Black
Current Rating (Amps)	40 A	5 - 40 A
For Use With/Related Products	-	Alligator Clips: CTM-11A, CTM-11C, CTM-51C, CTM-48C, CTM-48B, CTM-50C, CTM-55, CTM-48B2E, Alligator Clips: CTM-33C, CTM-27CGW, CTM-27, CTM-27CG, CTM-27C, Alligator Clips: CTM-21A, CTM-21C, CTM-30BL, CTM-30TBO, 8783, 33699, 8099, 25182, 33674, 8078, CTM-34C, CTM-34, CTM-60CS, CTM-60U, CTM-60PR2, CTM-60S, CTM-60C, CTM-60X, CTM-60, CTM-60TBO, CTM-61
Insulation	Non-Insulated	Insulated, Insulated Sleeve, Non-Insulated
Jaw Opening	19.05 mm	0.188 - 19.05 in
Jaw Opening	0.75 in	0.75 - 28.58 mm
Jaw Opening	-	3 in
Length	3 in	2.03 - 3 in
Length	76.2 mm	51.56 - 76.2 mm
Length	-	27.94 mm
Length	-	1.1 "
Material	-	Copper
Material - Insulation	-	Poly-Vinyl Chloride (PVC), Tenite Acetate
Plating	Zinc	Zinc, Nickel
Quantity	1 Box	1 - 500 Box
Specifications	-	1 - 500 Pieces
Termination	Crimp or Screw	Banana, Female Socket (Jack), Crimp or Solder, Crimp or Screw, Tip Plug, Female Socket (Jack)
Type	Heavy Duty	Probe, Test Clip, Lead, Alligator, Battery Terminal Clamp, Miniature, Heavy Duty

LARGE HEAVY DUTY CLIP INSULATOR

Part	Type	Accessory Type	Specifications	For Use With/Related Products	Color	Material - Insulation	Current Rating (Amps)	Length	Length	Termination	Jaw Opening	Jaw Opening	Insulation	Material	Quantity	Plating
Cal Test Electronics CTM-13-5	Lead, Probe, Test Clip	Insulator, Green	500 Pieces	Alligator Clips: CTM-11A, CTM-11C
Cal Test Electronics CTM-49-0	Lead, Probe, Test Clip	Insulator, Black	500 Pieces	CTM-48B, CTM-48B2E, CTM-48C, CTM-50C, CTM-51C, CTM-55
Cal Test Electronics CTM-63C-2	Alligator				Red	Poly-Vinyl Chloride (PVC)	10 A	2.244 in	57 mm	Banana, Female Socket (Jack)	0.31 in	7.87 mm	Insulated	Copper	1 Box
Cal Test Electronics CTM-35-2	Lead, Probe, Test Clip	Insulator, Red	500 Pieces	Alligator Clips: CTM-33C
Cal Test Electronics CTM-46C-2	Battery Terminal Clamp, Miniature				Red	Poly-Vinyl Chloride (PVC)		2.88 in	73.15 mm	Crimp or Solder	1.125 "	28.58 mm	Insulated Sleeve	Copper	1 Box
Cal Test Electronics CTM-29-9	Lead, Probe, Test Clip	Insulator, White	1	CTM-27, CTM-27C, CTM-27CG, CTM-27CGW
Cal Test Electronics CTM-49-2	Lead, Probe, Test Clip	Insulator, Red	500 Pieces	CTM-48B, CTM-48B2E, CTM-48C, CTM-50C, CTM-51C, CTM-55
Cal Test Electronics CTM-25	Heavy Duty				Natural		40 A	3 in	76.2 mm	Crimp or Screw	19.05 mm	0.75 in	Non-Insulated		1 Box	Zinc
Cal Test Electronics CTM-51C	Alligator				Natural		20 A	2.28 "	57.9 mm	Crimp or Solder	0.5 in	12.7 mm	Non-Insulated	Copper	500
Cal Test Electronics CTM-23-6	Lead, Probe, Test Clip	Insulator, Blue	1	Alligator Clips: CTM-21A, CTM-21C
