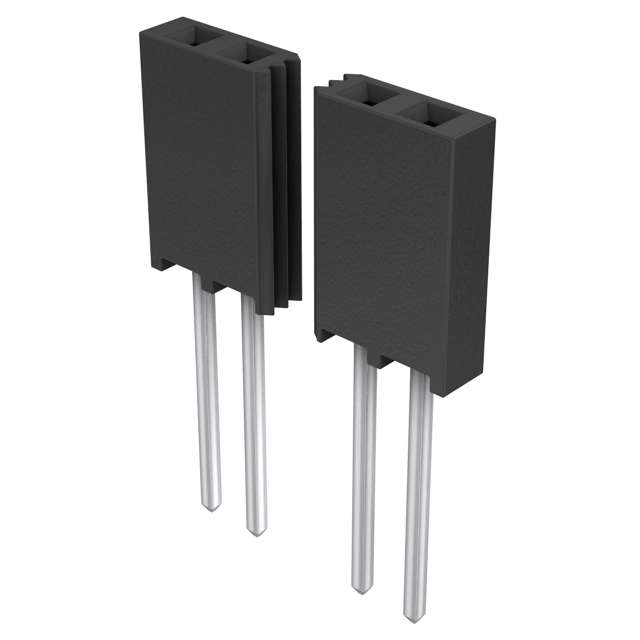

SSQ-145-03-T-S

Active

Samtec Inc.

CONN RCPT 45POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSSQ Through Hole Footprint Datasheet +2

SSQ-145-03-T-S

Active

Samtec Inc.

CONN RCPT 45POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsSSQ Through Hole Footprint Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-145-03-T-S

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	10 mm
Contact Length - Post	0.394 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	45
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-145 Series

Part	Mounting Type	Voltage Rating	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Color	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Finish - Post	Number of Rows	Fastening Type	Contact Finish - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Contact Material	Termination	Insulation Height	Insulation Height	Contact Type	Contact Length - Post	Contact Length - Post
Samtec Inc. SSQ-145-04-G-D	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm	2.54 mm	0.1 in	90	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square	0.584 "	14.83 mm	0.51 µm	20 µin	All	Gold	2	Push-Pull	Gold	UL94 V-0	3 µin	0.076 µm	Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked
Samtec Inc. SSQ-145-02-T-S	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm			45	Black	Receptacle	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Square					All	Tin	1	Push-Pull		UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	4.93 mm	0.194 in
Samtec Inc. SSQ-145-03-T-S	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm			45	Black	Receptacle	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Square					All	Tin	1	Push-Pull		UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	10 mm	0.394 in
Samtec Inc. SSQ-145-02-S-D-RA	Through Hole Right Angle	465 VAC 655 VDC	0.1 in	2.54 mm	2.54 mm	0.1 in	90	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square			0.76 Ám	30 Áin	All	Tin	2	Push-Pull	Gold	UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.195 in	4.95 mm	Forked	2.54 mm	0.1 in
Samtec Inc. SSQ-145-02-G-S	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm			45	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square			0.51 µm	20 µin	All	Gold	1	Push-Pull	Gold	UL94 V-0	3 µin	0.076 µm	Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	4.93 mm	0.194 in
Samtec Inc. SSQ-145-02-S-S	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm			45	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square			0.76 Ám	30 Áin	All	Tin	1	Push-Pull	Gold	UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	4.93 mm	0.194 in
Samtec Inc. SSQ-145-03-T-D	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm	2.54 mm	0.1 in	90	Black	Receptacle	-55 °C	105 ░C	Liquid Crystal Polymer (LCP)	Square					All	Tin	2	Push-Pull		UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	10 mm	0.394 in
Samtec Inc. SSQ-145-03-S-D	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm	2.54 mm	0.1 in	90	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square			0.76 Ám	30 Áin	All	Tin	2	Push-Pull	Gold	UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	10 mm	0.394 in
Samtec Inc. SSQ-145-02-S-D	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm	2.54 mm	0.1 in	90	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square			0.76 Ám	30 Áin	All	Tin	2	Push-Pull	Gold	UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	4.93 mm	0.194 in
Samtec Inc. SSQ-145-01-S-D	Through Hole	465 VAC 655 VDC	0.1 in	2.54 mm	2.54 mm	0.1 in	90	Black	Receptacle	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	Square			0.76 Ám	30 Áin	All	Tin	2	Push-Pull	Gold	UL94 V-0			Board to Board Cable	Phosphor Bronze	Solder	0.335 "	8.51 mm	Forked	2.64 mm	0.104 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.23
		10	$ 5.63
		100	$ 4.93
		500	$ 4.15
		1000	$ 3.63

Description

General part information

SSQ-145 Series

45 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin

Documents

Technical documentation and resources

SSQ Through Hole Footprint

Datasheet

SSQ Footprint

Datasheet
