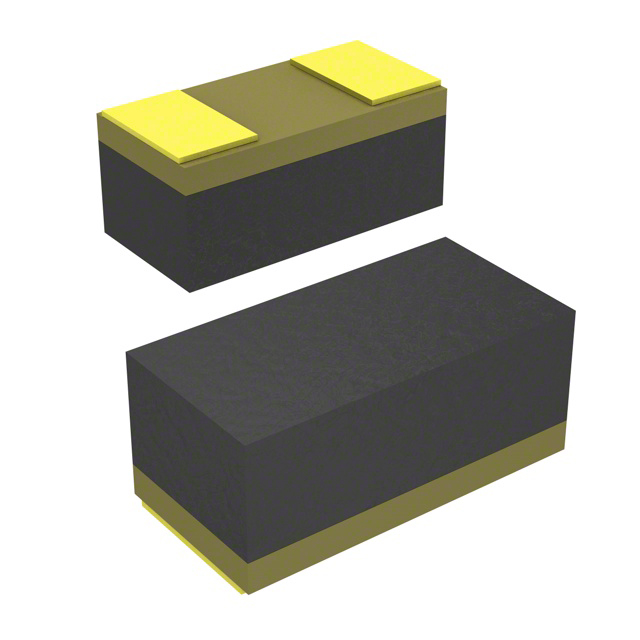

CD1005-S0180R

Obsolete

Bourns Inc.

DIODE GEN PURP 80V 100MA 1005

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CD1005-S0180R

Obsolete

Bourns Inc.

DIODE GEN PURP 80V 100MA 1005

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD1005-S0180R

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	100 mA
Current - Reverse Leakage @ Vr	50 nA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	1005 (2512 Metric)
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	1005
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	80 V
Voltage - Forward (Vf) (Max) @ If	1 V

CD1005 Series

Part	Current - Reverse Leakage @ Vr	Impedance (Max) (Zzt) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Voltage - Zener (Nom) (Vz)	Power - Max [Max]	Supplier Device Package	Tolerance	Voltage - Forward (Vf) (Max) @ If	Technology	Capacitance @ Vr, F	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Impedance (Max) (Zzt)
Bourns Inc. CD1005-Z3V9	10 µA	95 Ohms	-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	3.9 V	200 mW	1005	5 %
Bourns Inc. CD1005-B0230	30 µA				Surface Mount	1005 (2512 Metric)			1005		500 mV	Schottky	12 pF	125 °C	-40 °C	Any Speed	200 mA	30 V	200 mA
Bourns Inc. CD1005-Z39	100 nA	90 Ohms	-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	39 V	200 mW	1005	5 %
Bourns Inc. CD1005-S0180R	50 nA				Surface Mount	1005 (2512 Metric)			1005		1 V	Standard	4 pF	125 °C	-40 °C	Any Speed	200 mA	80 V	100 mA	4 ns
Bourns Inc. CD1005-Z5V6	100 nA	40 Ohms	-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	5.6 V	200 mW	1005	5 %
Bourns Inc. CD1005-Z16	100 nA	40 Ohms	-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	16 V	200 mW	1005	5 %
Bourns Inc. CD1005-Z6V2	100 nA		-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	6.2 V	200 mW	1005	5 %											10 Ohms
Bourns Inc. CD1005-Z2V4	100 µA	85 Ohms	-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	2.4 V	200 mW	1005	5 %
Bourns Inc. CD1005-Z24	100 nA		-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	24 V	200 mW	1005	5 %
Bourns Inc. CD1005-Z7V5	100 nA	7 Ohms	-55 °C	125 °C	Surface Mount	1005 (2512 Metric)	7.5 V	200 mW	1005	5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CD1005 Series

Diode 80 V 100mA Surface Mount 1005

Documents

Technical documentation and resources
