U90-B305-4081-100

Active

Amphenol ICC (Commercial Products)

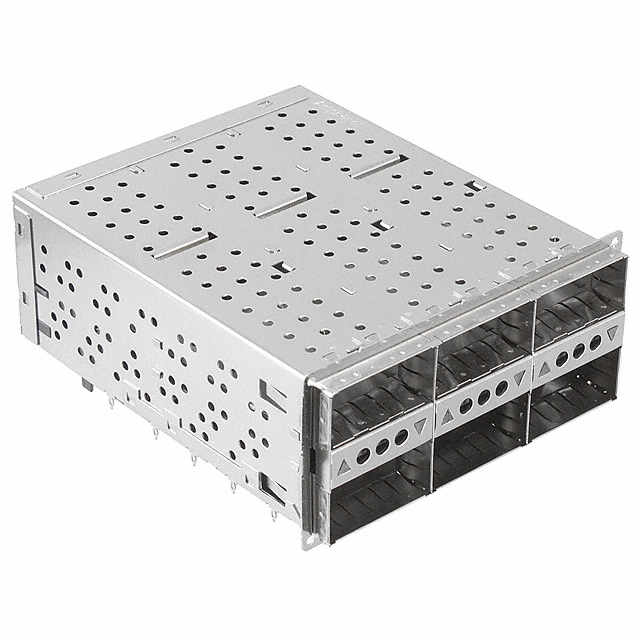

CONN QSFP+ RCPT CAGE 2X3 228P RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

U90-B305-4081-100

Active

Amphenol ICC (Commercial Products)

CONN QSFP+ RCPT CAGE 2X3 228P RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

U90 Series

228 (38 x 6) Position QSFP+ Receptacle with Cage, Ganged (2x3) Connector Press-Fit Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	U90-B305-4081-100	U90 Series

Connector Style	Receptacle with Cage, Ganged (2x3)	Cage with Heat Sink, Receptacle with Cage, Ganged (2x3), Heat Sink, Ganged (1 x 3), Cage, Ganged (1 x 4) with Heat Sink
Connector Type	QSFP+	QSFP, QSFP+
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Light Pipe, EMI Shielded	EMI Shielded, Light Pipe, Dust Cap
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions [custom]	228	228
Number of Positions [x]	38	38
Number of Positions [y]	6	6
Termination	Press-Fit	Press-Fit

U90 Series

QSFP CAGE ASSEMBLY

Part	Mounting Type	Connector Style	Termination	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Positions [custom]	Number of Positions [x]	Number of Positions [y]
Amphenol ICC (Commercial Products) U90-H161-100A	Through Hole, Right Angle	Cage with Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-A181-1001	Through Hole, Right Angle	Cage with Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-B305-4081-100	Through Hole, Right Angle	Ganged (2x3), Receptacle with Cage	Press-Fit	EMI Shielded, Light Pipe	QSFP+	0.76 Ám	30 Áin	Gold	228	38	6
Amphenol ICC (Commercial Products) U90-G361-101A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G461-103A	Through Hole, Right Angle	Cage, Ganged (1 x 4) with Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G351-101A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G351-100A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-G461-101A	Through Hole, Right Angle	Cage, Ganged (1 x 4) with Heat Sink	Press-Fit	EMI Shielded, Light Pipe	QSFP
Amphenol ICC (Commercial Products) U90-G361-100A	Through Hole, Right Angle	Cage, Ganged (1 x 3), Heat Sink	Press-Fit	EMI Shielded	QSFP
Amphenol ICC (Commercial Products) U90-T161-1D0A	Through Hole, Right Angle	Cage with Heat Sink	Press-Fit	Dust Cap, EMI Shielded	QSFP
