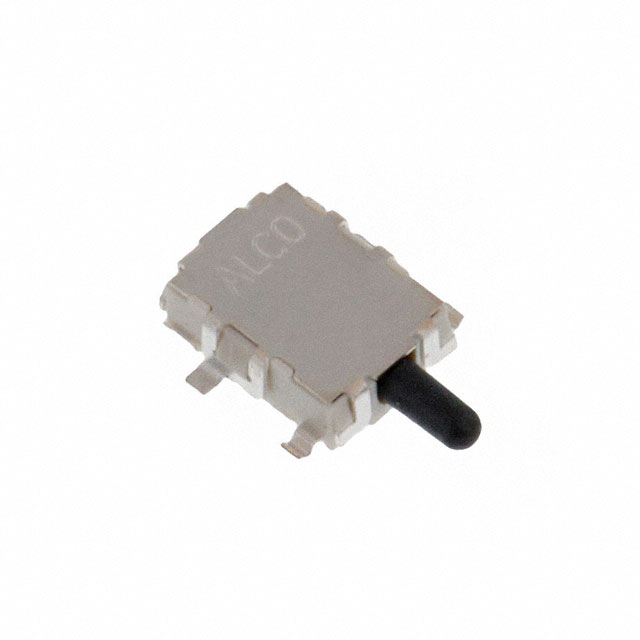

JJHH0UG200NCNMRTR
ActiveTE Connectivity Raychem Cable Protection
SWITCH DETECTOR SPST-NC 0.01A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JJHH0UG200NCNMRTR |
|---|---|
| Actuator Type | Angled Toggle (Detector) |
| Circuit | SPST-NC |
| Current Rating (Amps) | 10 mA |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Surface Mount |
| Operating Force | 150 gf |
| Operating Position [x] | 3.4 mm |
| Operating Position [x] | 0.134 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pretravel | 0.35 mm |
| Pretravel | 0.014 in |
| Switch Function | On-Mom |
| Termination Style | Gull Wing |
| Voltage Rating - DC | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.43 | |||
| Digi-Reel® | 1 | $ 0.65 | ||
| 10 | $ 0.63 | |||
| 25 | $ 0.59 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.43 | |||
| 1000 | $ 0.43 | |||
| Tape & Reel (TR) | 3000 | $ 0.57 | ||
Description
General part information
JJHH0 Series
Switch SPST-NC Surface Mount
