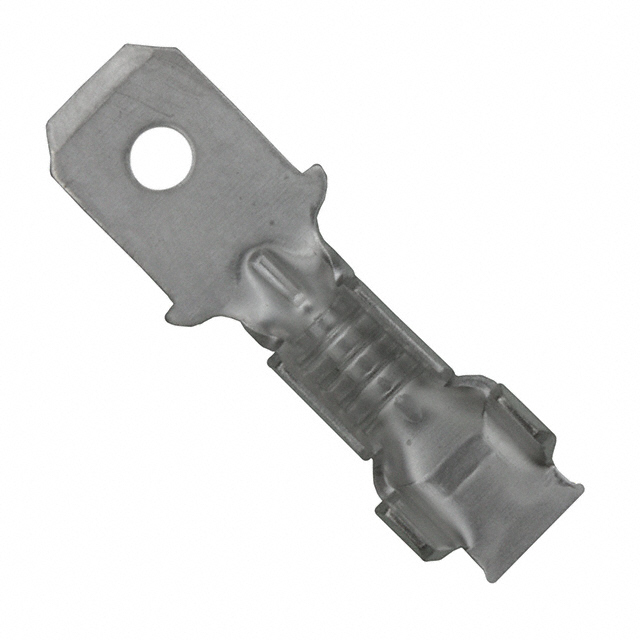

62531-1

Active

TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 14-18AWG BRASS M 17.15MM TIN T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet FASTON Straight Receptacles with ''F-'' Crimp Feature +5

62531-1

Active

TE Connectivity Raychem Cable Protection

QUICK DISCONNECT TERMINAL 14-18AWG BRASS M 17.15MM TIN T/R

Deep-Dive with AI

DocumentsDatasheet FASTON Straight Receptacles with ''F-'' Crimp Feature +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	62531-1

Contact Finish	Tin
Contact Material	Brass
Gender	Male
Insulation	Non-Insulated
Insulation Diameter [Max]	3.81 mm
Insulation Diameter [Max]	0.15 in
Insulation Diameter [Min]	3.05 mm
Insulation Diameter [Min]	0.12 in
Mounting Type	Free Hanging (In-Line)
Tab Length	6.35 mm
Tab Length	0.25 in
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	5.21 mm
Tab Width	0.205 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	14 AWG

FASTON 205 Series

Terminals 205 FASTON RECP 18-14 NPST

Part	Insulation	Gender	Contact Material	Tab Width	Tab Width	Contact Finish	Termination	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Terminal Type	Tab Length	Tab Length	Mounting Type	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Length - Overall [x]	Length - Overall [x]	Tab Length	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Overall	Length - Overall	Color	Insulation Diameter [diameter]	Insulation Diameter [diameter]
TE Connectivity Raychem Cable Protection 62531-1	Non-Insulated	Male	Brass	5.21 mm	0.205 in	Tin	Crimp	3.05 mm	3.81 mm	0.15 in	0.12 in	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.02 "	0.51 mm	14 AWG	18 AWG
TE Connectivity Raychem Cable Protection 60904-2	Non-Insulated	Female	Brass	5.21 mm	0.205 in	Tin	Crimp	2.16 mm	3.18 mm	0.125 in	0.085 in	Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.032 in	0.81 mm	17.5 AWG	22 AWG	15.65 mm	0.616 in
TE Connectivity Raychem Cable Protection 1217080-1	Non-Insulated	Female	Brass	5.21 mm 6.35 mm	0.205 in 0.25 in	Tin	Solder					Standard		8.38 mm	Through Hole	0.032 in	0.81 mm			12.19 mm	0.48 in	0.33 in
TE Connectivity Raychem Cable Protection 1742595-1	Non-Insulated	Female	Steel	5.21 mm	0.205 in	Nickel	Crimp					Angled - 90° Flag	6.35 mm	0.25 in	Free Hanging (In-Line) Right Angle	0.032 in	0.81 mm	14 AWG	18 AWG				2.54 mm	0.15 "	0.1 "	3.81 mm
TE Connectivity Raychem Cable Protection 42713-2	Non-Insulated	Female	Brass	5.21 mm	0.205 in	Tin	Crimp					Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.02 "	0.51 mm	14 AWG	18 AWG				3.3 mm	0.18 in	0.13 in	4.57 mm	15.62 mm	0.615 in
TE Connectivity Raychem Cable Protection 60613-2
TE Connectivity Raychem Cable Protection 640913-2	Non-Mating End Insulated	Female	Brass	5.21 mm	0.205 in	Tin	Crimp					Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.02 "	0.51 mm			20.32 mm	0.8 in								Blue
TE Connectivity Raychem Cable Protection 8-640909-1	Non-Mating End Insulated	Female	Brass	5.21 mm	0.205 in	Tin	Crimp					Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.02 "	0.51 mm	17.5 AWG	22 AWG	20.32 mm	0.8 in								Red	0.135 in	3.43 mm
TE Connectivity Raychem Cable Protection 63968-1	Non-Insulated	Female	Brass	5.21 mm 6.35 mm	0.205 in 0.25 in	Tin	Solder					Standard		8.38 mm	Through Hole	0.032 in	0.81 mm			12.19 mm	0.48 in	0.33 in
TE Connectivity Raychem Cable Protection 1742594-1	Non-Insulated	Female	Steel	5.21 mm	0.205 in	Nickel	Crimp					Standard	6.35 mm	0.25 in	Free Hanging (In-Line)	0.032 in	0.81 mm	14 AWG	18 AWG				2.54 mm	0.15 "	0.1 "	3.81 mm	15.62 mm	0.615 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.31
		10	$ 0.26
		25	$ 0.21
Digikey	Cut Tape (CT)	1	$ 0.22
		10	$ 0.19
		25	$ 0.19
		50	$ 0.18
		100	$ 0.17
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.12
	Tape & Reel (TR)	3500	$ 0.14

Description

General part information

FASTON 205 Series

Terminals 205 FASTON RECP 18-14 NPST

Documents

Technical documentation and resources

Datasheet

62531-1

Deep-Dive with AI

62531-1

Deep-Dive with AI

Technical Specifications

FASTON 205 Series

Pricing

Description

FASTON 205 Series

Documents

Datasheet

FASTON Straight Receptacles with ''F-'' Crimp Feature

Quick connect connectors

POWER_CONNECTORS_CATALOG_SEC08_AC_INPUTS

Datasheet

FASTON Tabs

ENG_CD_62531_C_baseFilename.pdf

FASTON 205 Series
