ADM3056E Series

Part	Number of Drivers	Number of Receivers	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Data Rate	Type	Protocol	Package Name	Package Length	Package Width	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Supplied Contents	Primary Attributes	Function	Utilized IC / Part	Embedded	Contents	Secondary Attributes
Analog Devices Inc./Maxim Integrated ADM3056EBRIZ-RL	1	1	125 °C	-40 °C	Surface Mount	12 Mbps	Isolated Transceiver	CANbus	16-SOIC	0.295 in	7.5 mm	6 V	0.5 V

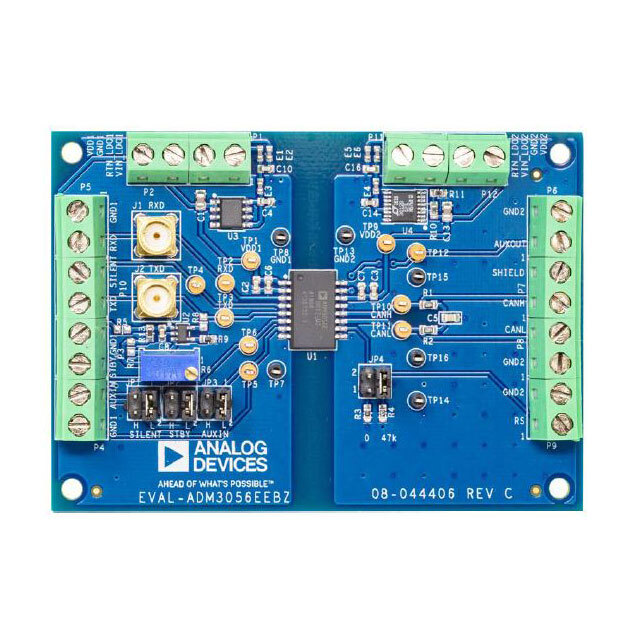

Analog Devices Inc./Maxim Integrated EVAL-ADM3056EEBZ							Interface							Board(s)	Isolated	CANbus	ADM3056E	No	Board	On-Board Test Points
Analog Devices Inc./Maxim Integrated ADM3056EBRIZ	1	1	125 °C	-40 °C	Surface Mount	12 Mbps	Isolated Transceiver	CANbus	16-SOIC	0.295 in	7.5 mm	6 V	0.5 V
