PJ-065B

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

CUI Devices

CONN PWR JACK 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-065B

Actual Diameter [diameter]	0.098 in, 0.24 "
Actual Diameter [diameter]	2.5 mm, 6.1 mm
Body Color	Black
Body Material	Brass
Connector Type	Jack
Contact Material	Brass, Phosphor Bronze
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Polybutylene Terephthalate (PBT)
Includes	Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Internal Switch(s)	Single Switch, Normally Closed
Material Flammability Rating	UL94 V-0
Mating Length/Depth	0.461 in
Mating Length/Depth	11.7 mm
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions/Contacts	3 Conductors, 2 Conductors
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet(s)
Thread Size	5/16"-32
Voltage - Rated	24 VDC

Part	Number of Positions/Contacts	Voltage - Rated	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Termination	Current Rating (Amps)	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Contact Material	Mounting Feature	Connector Type	Actual Diameter [diameter]	Actual Diameter [diameter]	Internal Switch(s)	Contact Material - Plating [custom]	Housing Material	Body Material	Body Color	Mating Length/Depth	Mating Length/Depth	Includes	Shielding	Thread Size	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]
CUI Devices PJ-065B	2 Conductors 3 Conductors	24 VDC	2.5 mm 5.5 mm	0.098 " 0.217 "	Solder Eyelet(s)	5 A	UL94 V-0	Mounting Hardware Thread Lock	70 °C	-25 °C	Male	Brass Phosphor Bronze	Bulkhead - Front Side Nut	Jack	0.098 in 0.24 "	2.5 mm 6.1 mm	Normally Closed Single Switch	Silver	Polybutylene Terephthalate (PBT)	Brass	Black	0.461 in	11.7 mm	Connector Nut Washer	Unshielded	5/16"-32
CUI Devices PJ-065A	2 Conductors 3 Conductors	24 VDC	2 mm 5.5 mm	0.079 in 0.217 "	Solder Eyelet(s)	5 A	UL94 V-0	Mounting Hardware Thread Lock	70 °C	-25 °C	Male	Brass Phosphor Bronze	Bulkhead - Front Side Nut	Jack			Normally Closed Single Switch	Silver	Polybutylene Terephthalate (PBT)	Brass	Black	0.421 in	10.7 mm	Connector Nut Washer	Unshielded	5/16"-32	2 mm	0.224 in	5.7 mm	0.079 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

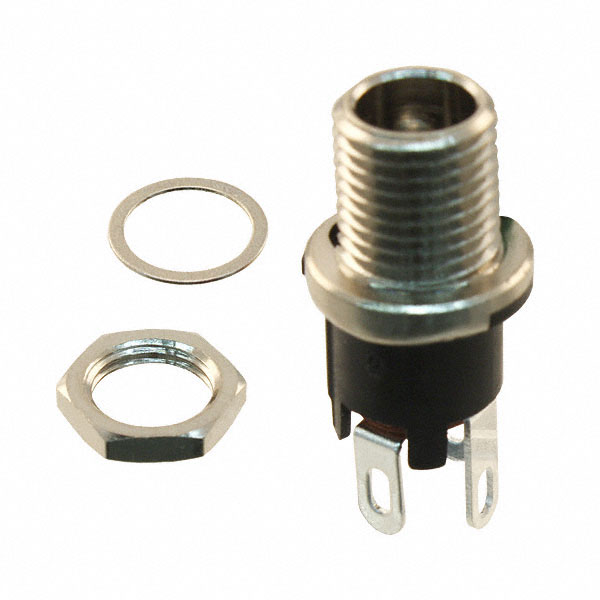

Power Barrel Connector Jack 2.50mm ID (0.098"), 5.50mm OD (0.217") Panel Mount
