BSV10X-E

Active

Panduit Corp

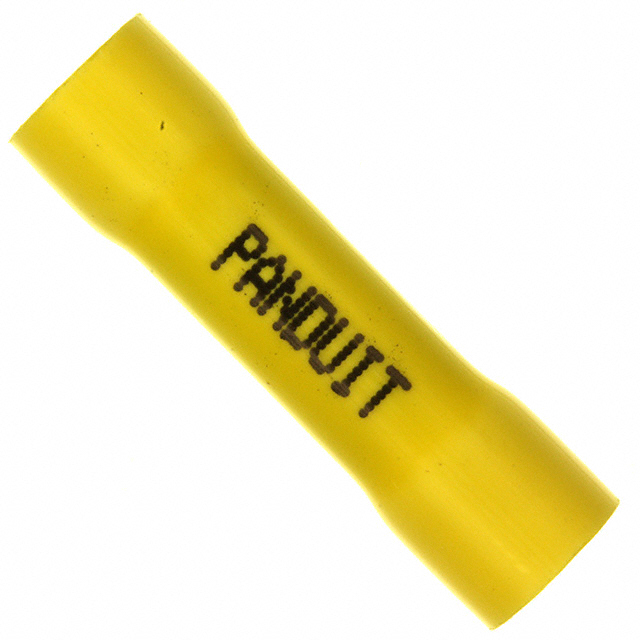

CONN SPLICE 10-12 AWG CRIMP

Search across all available documentation for this part.

Active

Panduit Corp

CONN SPLICE 10-12 AWG CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Terminals BUTT SPLICE 12-10AWG INSUL YELLOW

Technical documentation and resources

Specification	BSV10X-E	BSV10X Series

Color	Yellow	Yellow
Features	Brazed Seam	Brazed Seam
Insulation	Fully Insulated	Fully Insulated
Number of Wire Entries	2	2
Terminal Type	Butt Splice, Inline, Individual Openings	Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part	Features	Wire Gauge [Max]	Wire Gauge [Min]	Color	Insulation	Number of Wire Entries	Termination	Terminal Type
Panduit Corp BSV10X-Q	Brazed Seam	12 AWG	10 AWG	Yellow	Fully Insulated	2	Crimp	Butt Splice, Individual Openings, Inline
Panduit Corp BSV10X-E	Brazed Seam	12 AWG	10 AWG	Yellow	Fully Insulated	2	Crimp	Butt Splice, Individual Openings, Inline
