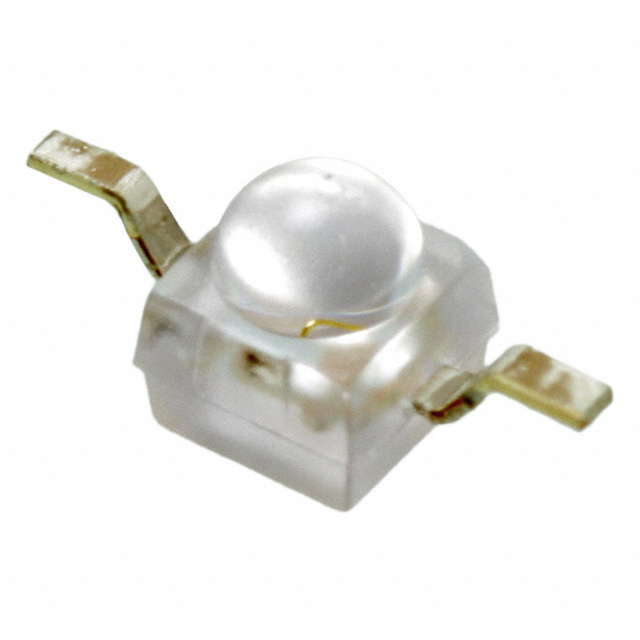

VSMB2948RG

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA 2SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA 2SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.35V 100mA 10mW/sr @ 100mA 50° 2-SMD, Z-Bend

Technical documentation and resources

Specification	VSMB2948RG	VSMB2948 Series

Current - DC Forward (If) (Max) [Max]	100 mA	100 mA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	2-SMD, Z-Bend	2-SMD, Gull Wing, 2-SMD, Z-Bend
Radiant Intensity (Ie) Min @ If	100 mA	100 mA
Radiant Intensity (Ie) Min @ If [Min]	10 mW/sr	10 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	50 °	50 °
Voltage - Forward (Vf) (Typ)	1.35 V	1.35 V
Wavelength	940 nm	940 nm

Part	Package / Case	Type	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Orientation	Mounting Type	Voltage - Forward (Vf) (Typ)	Radiant Intensity (Ie) Min @ If [Min]	Radiant Intensity (Ie) Min @ If	Wavelength
Vishay Semiconductor Opto Division VSMB2948G	2-SMD, Gull Wing	Infrared (IR)	100 mA	85 °C	-40 °C	50 °	Top View	Surface Mount	1.35 V	10 mW/sr	100 mA	940 nm
Vishay Semiconductor Opto Division VSMB2948RG	2-SMD, Z-Bend	Infrared (IR)	100 mA	85 °C	-40 °C	50 °	Top View	Surface Mount	1.35 V	10 mW/sr	100 mA	940 nm
