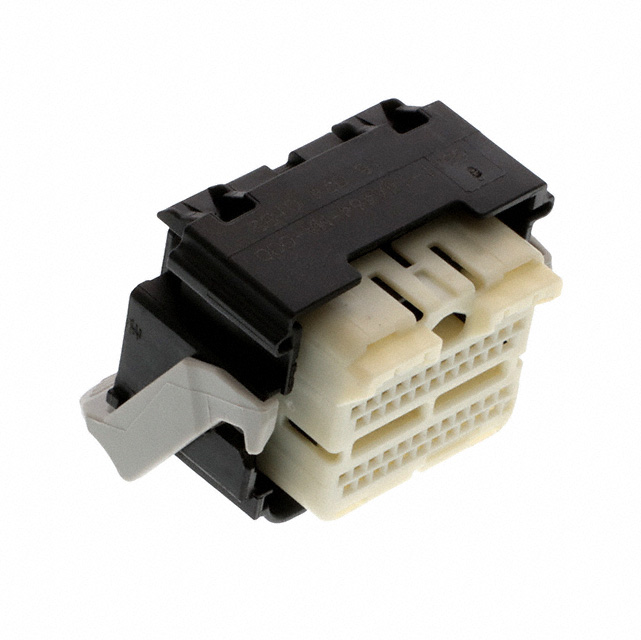

1438129-2

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 50POS

Search across all available documentation for this part.

TE Connectivity Raychem Cable Protection

CONN RCPT HSG 50POS

Technical Specifications

Parameters and characteristics for this part

Specification	1438129-2

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Lever Lock
Features	IP67
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	50
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C

Part	Contact Termination	Number of Positions	Connector Type	Fastening Type	Color	Note	Mounting Type	Row Spacing [x]	Row Spacing	Contact Type	Insulation Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows
TE Connectivity Raychem Cable Protection 6-1438129-7	Crimp	50	Housing for Female Insert	Latch Lock	Black	Contacts Not Included	Free Hanging (In-Line)	0.1 in	2.54 mm	Female Socket
TE Connectivity Raychem Cable Protection 1438129-2	Crimp	50	Receptacle	Lever Lock	Black	Contacts Not Included	Free Hanging (In-Line)			Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled	IP67	125 °C	-40 °C	5
TE Connectivity Raychem Cable Protection 8-1438129-4	Crimp	50	Receptacle	Lever Lock	Black	Contacts Not Included	Free Hanging (In-Line)			Female Socket	Polyamide (PA66) Nylon 6/6 Glass Filled				5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	160	$ 5.65

General part information

50 Rectangular Connectors - Housings Receptacle Black
