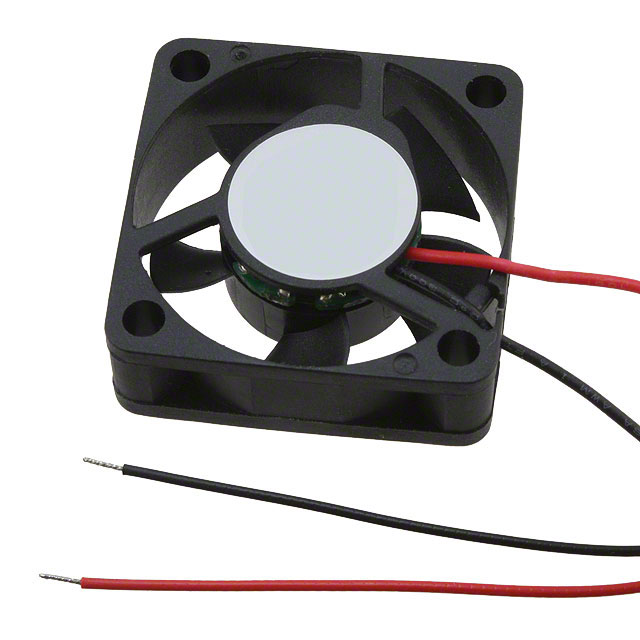

AFB0312HA-A
Delta Electronics
FAN AXIAL 30X10MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB0312HA-A
Delta Electronics
FAN AXIAL 30X10MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB0312HA-A |
|---|---|
| Air Flow | 0.098 mł/min |
| Air Flow | 3.5 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.09 A |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 25 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.08 W |
| RPM | 9000 RPM |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [z] | 30 mm |
| Static Pressure | 0.1 in H2O |
| Static Pressure | 24.9 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 9.5 VDC |
| Weight | 0.024 lb |
| Weight | 10.89 g |
| Width [y] | 10 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 720 | $ 7.29 | |
Description
General part information
AFB0312 Series
Fan Tubeaxial 12VDC Square - 30mm L x 30mm H Ball 3.5 CFM (0.098m³/min) 2 Wire Leads
