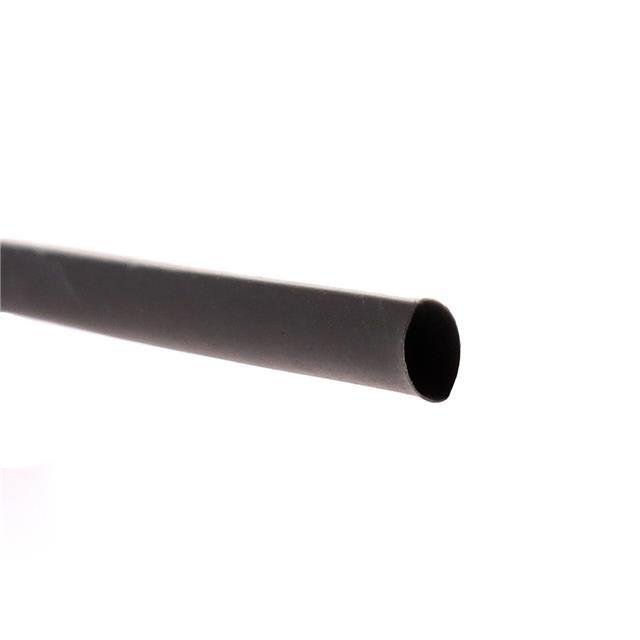

X4-8.0-0-FSP-SM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING 50M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

X4-8.0-0-FSP-SM

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK TUBING 50M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	X4-8.0-0-FSP-SM

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	0.335 in
Inner Diameter - Supplied [diameter]	8.51 mm
Length	164 ft
Length	50 m
Length	Enter Number of Meters in Order Quantity
Material	Polyolefin (PO), Irradiated, Halogen Free
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-30 ░C
Recovered Wall Thickness	0.013 in
Recovered Wall Thickness	0.33 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	65 °F, 18 °C
Type	Tubing, Flexible

RAYCHEM SWFR X4 Series

Part	Recovered Wall Thickness	Recovered Wall Thickness	Length	Length	Shrinkage Ratio	Shrink Temperature	Color	Length	Operating Temperature [Max]	Operating Temperature [Min]	Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shelf Life	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Spool Size	Spool Size
TE Connectivity Raychem Cable Protection X4-12.0-0-FSP-SM	0.013 in	0.33 mm	164 ft	50 m	2 to 1	70 °C	Black	Enter Number of Meters in Order Quantity	125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months	5.99 mm	0.236 in	12.9 mm	0.508 in	Polyolefin (PO) Irradiated Halogen Free
TE Connectivity Raychem Cable Protection X4-9.0-0-FSP-SM	0.013 in	0.33 mm	164 ft	50 m	2 to 1	70 °C	Black	Enter Number of Meters in Order Quantity	125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			9.5 mm	0.374 in	Polyolefin (PO) Irradiated Halogen Free	4.5 mm	0.177 "
TE Connectivity Raychem Cable Protection X4-3.0-0-SP	0.011 "	0.28 mm	82 ft 164 ft	25 m 50 m	2 to 1	70 °C	Black		125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			3.3 mm	0.13 in	Polyolefin (PO) Irradiated Halogen Free	1.52 mm	0.06 in	16.4 ft	5 m
TE Connectivity Raychem Cable Protection X4-8.0-0-FSP-SM	0.013 in	0.33 mm	164 ft	50 m	2 to 1	70 °C	Black	Enter Number of Meters in Order Quantity	125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			8.51 mm	0.335 in	Polyolefin (PO) Irradiated Halogen Free	3.99 mm	0.157 in
TE Connectivity Raychem Cable Protection X4-1.0-0-SP	0.01 in	0.25 mm	82 ft	25 m	2 to 1	70 °C	Black		125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			1.4 mm	0.055 in	Polyolefin (PO) Irradiated Halogen Free	0.51 mm	0.02 in	3.28 ft 16.4 ft	1 m 5 m
TE Connectivity Raychem Cable Protection X4-10.0-0-FSP-SM	0.013 in	0.33 mm	164 ft	50 m	2 to 1	70 °C	Black	Enter Number of Meters in Order Quantity	125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			10.49 mm	0.413 in	Polyolefin (PO) Irradiated Halogen Free	5.08 mm	0.2 in	16.4 ft	5 m
TE Connectivity Raychem Cable Protection X4-3.5-0-SP	0.011 "	0.28 mm	656.2 ft	200 m	2 to 1	70 °C	Black		125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			3.81 mm	0.15 in	Polyolefin (PO) Irradiated Halogen Free	1.75 mm	0.069 in	3.28 ft	1 m
TE Connectivity Raychem Cable Protection X4-3.5-0-SP-SM	0.011 "	0.28 mm	656.2 ft	200 m	2 to 1	70 °C	Black		125 °C	-30 ░C	Tubing Flexible			Flame Retardant	144 Months			3.81 mm	0.15 in	Polyolefin (PO) Irradiated Halogen Free	1.75 mm	0.069 in
TE Connectivity Raychem Cable Protection X4-1.5-0-SP-SM	0.01 in	0.25 mm	164 ft 656.2 ft	50 m 200 m	2 to 1	70 °C	Black	Enter Number of Meters in Order Quantity	125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months			1.91 mm	0.075 in	Polyolefin (PO) Irradiated Halogen Free	0.76 mm	0.03 in	3.28 ft 16.4 ft	1 m 5 m	656.2 '	200 m
TE Connectivity Raychem Cable Protection X4-0.8-0-SP	0.01 in	0.25 mm	656.2 ft	200 m	2 to 1	70 °C	Black		125 °C	-30 ░C	Tubing Flexible	18 °C 65 °F	35 °C	Flame Retardant	144 Months	0.41 mm		1.17 mm	0.046 in	Polyolefin (PO) Irradiated Halogen Free		0.016 in	3.28 ft 16.4 ft	1 m 5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 2.65
		5	$ 2.55
		10	$ 1.96
		25	$ 1.80
		50	$ 1.70
		100	$ 1.59
	Spool	50	$ 1.14
		100	$ 1.05
		150	$ 1.00
		250	$ 0.94
		350	$ 0.90
		500	$ 0.86
		1250	$ 0.84

Description

General part information

RAYCHEM SWFR X4 Series

Heat Shrink Tubing, Flexible 0.335" (8.51mm) 2 to 1 Black 164.0' (50.0m)
