DP150M-7S

Active

Tri-Mag, LLC

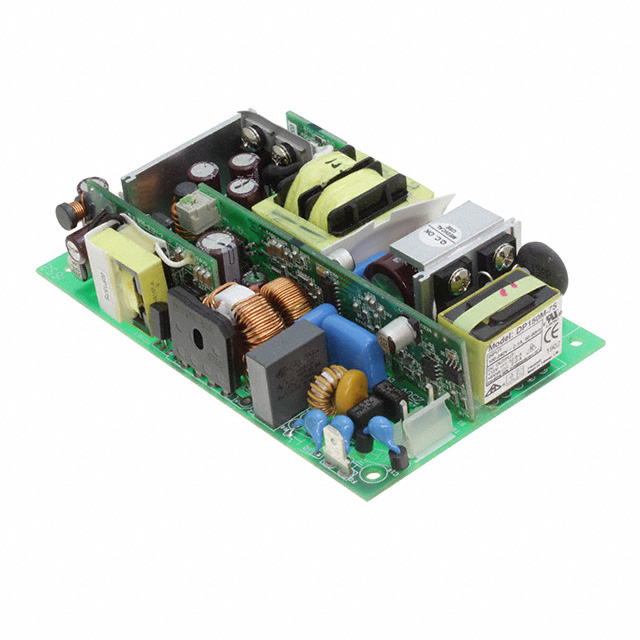

AC/DC CONVERTER 12V 150W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 150W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	DP150M-7S	DP150M Series

Applications	Medical	Medical
Approval Agency	CE, CB	CE, CB
Current - Output 1	12 A	4 - 12 A
Efficiency	89 %	89 %
Features	Remote Sense, Standby Output, PFC, Universal Input	Remote Sense, Standby Output, PFC, Universal Input
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 °C	-20 °C
Power (Watts)	150 W	150 W
Power (Watts)	220 W	220 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [z]	36.1 mm	36.1 mm
Size / Dimension [z]	1.42 in	1.42 in
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	12 V	12 - 36 V

AC/DC CONVERTER 36V 150W

Part	Type	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type	Number of Outputs	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Current - Output 1	Power (Watts)	Power (Watts)	Applications	Approval Agency
Tri-Mag, LLC DP150M-JS	Open Frame	90 VAC	264 VAC	Chassis Mount	1	89 %	36 V	-20 °C	70 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	PFC, Remote Sense, Standby Output, Universal Input	4 A	150 W	220 W	Medical	CB, CE
Tri-Mag, LLC DP150M-3S	Open Frame	90 VAC	264 VAC	Chassis Mount	1	89 %	18 V	-20 °C	70 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	PFC, Remote Sense, Standby Output, Universal Input	8 A	150 W	220 W	Medical	CB, CE
Tri-Mag, LLC DP150M-GS	Open Frame	90 VAC	264 VAC	Chassis Mount	1	89 %	28 V	-20 °C	70 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	PFC, Remote Sense, Standby Output, Universal Input	5.1 A	150 W	220 W	Medical	CB, CE
Tri-Mag, LLC DP150M-7S	Open Frame	90 VAC	264 VAC	Chassis Mount	1	89 %	12 V	-20 °C	70 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	PFC, Remote Sense, Standby Output, Universal Input	12 A	150 W	220 W	Medical	CB, CE
Tri-Mag, LLC DP150M-8S	Open Frame	90 VAC	264 VAC	Chassis Mount	1	89 %	15 V	-20 °C	70 °C	5 in	36.1 mm	76.2 mm	127 mm	3 "	1.42 in	PFC, Remote Sense, Standby Output, Universal Input	9.6 A	150 W	220 W	Medical	CB, CE
