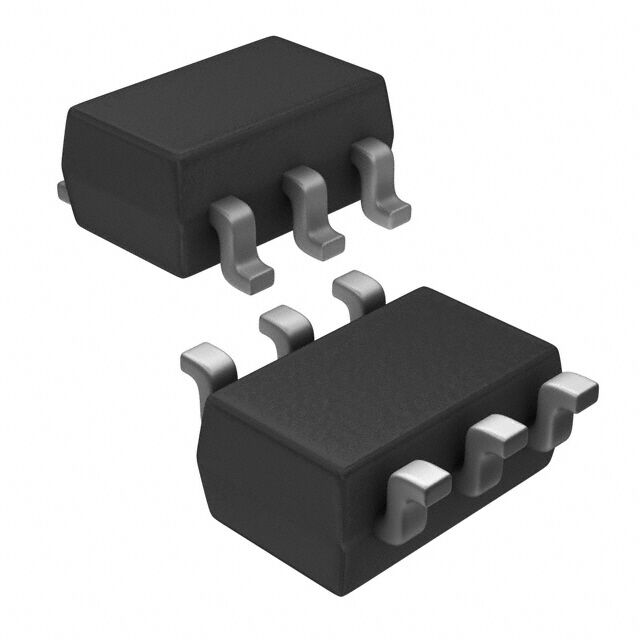

AO6404

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 20V 8.6A 6TSOP

Search across all available documentation for this part.

Obsolete

Alpha & Omega Semiconductor Inc.

MOSFET N-CH 20V 8.6A 6TSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AO6404	AO640 Series

Current - Continuous Drain (Id) @ 25°C	8.6 A	5 - 8.6 A
Drain to Source Voltage (Vdss)	20 V	20 - 30 V
Drive Voltage (Max Rds On, Min Rds On)	1.8 V, 10 V	1.8 - 10 V
Drive Voltage (Max Rds On, Min Rds On)	-	10 V
Drive Voltage (Max Rds On, Min Rds On)	-	2.5 V
FET Type	N-Channel	N-Channel, P-Channel
Gate Charge (Qg) (Max) @ Vgs	17.9 nC	17 - 17.9 nC
Input Capacitance (Ciss) (Max) @ Vds	1810 pF	780 - 1810 pF
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SC-74, SOT-457	SC-74, SOT-457
Power Dissipation (Max) [Max]	2 W	2 W
Rds On (Max) @ Id, Vgs	-	27 - 47 mOhm
Supplier Device Package	6-TSOP	6-TSOP
Technology	MOSFET (Metal Oxide)	MOSFET (Metal Oxide)
Vgs (Max)	12 V	12 - 20 V
Vgs(th) (Max) @ Id	1 V	1 - 2.5 V

MOSFET N-CH 30V 7.5A 6TSOP

Part	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	FET Type	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Technology	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Vgs (Max)	Mounting Type	Package / Case	Drive Voltage (Max Rds On, Min Rds On) [Min]	Drive Voltage (Max Rds On, Min Rds On) [Max]
Alpha & Omega Semiconductor Inc. AO6402A	7.5 A	820 pF	-55 °C	150 °C	2.5 V	N-Channel	4.5 V, 10 V	2 W	27 mOhm	30 V	MOSFET (Metal Oxide)	6-TSOP	17 nC	20 V	Surface Mount	SC-74, SOT-457
Alpha & Omega Semiconductor Inc. AO6401	5 A	780 pF	-55 °C	150 °C	1.3 V	P-Channel		2 W	47 mOhm	30 V	MOSFET (Metal Oxide)	6-TSOP	17 nC	12 V	Surface Mount	SC-74, SOT-457	10 V	2.5 V
Alpha & Omega Semiconductor Inc. AO6404	8.6 A	1810 pF	-55 °C	150 °C	1 V	N-Channel	1.8 V, 10 V	2 W		20 V	MOSFET (Metal Oxide)	6-TSOP	17.9 nC	12 V	Surface Mount	SC-74, SOT-457
