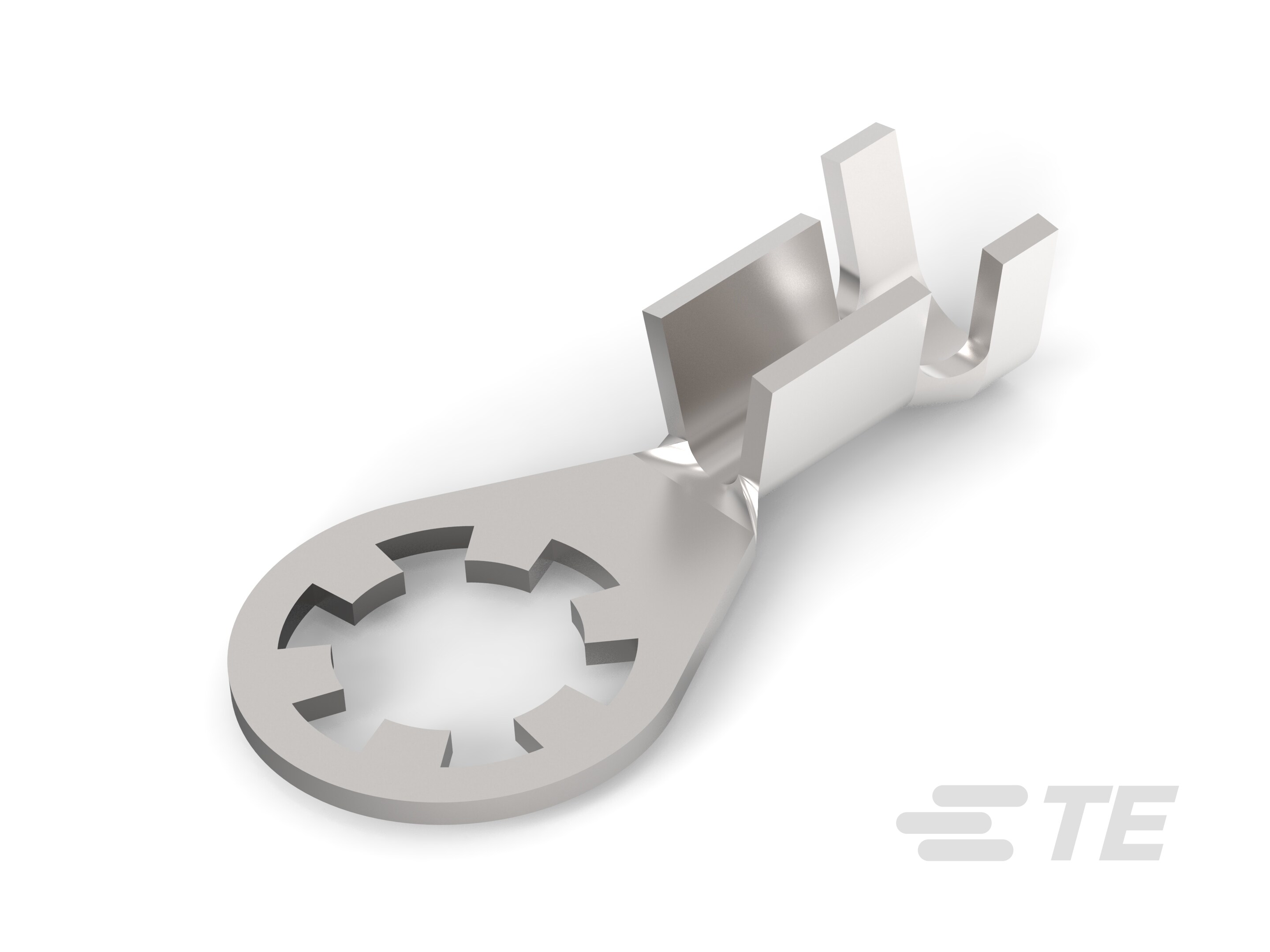

Specification	640052-1

Contact Material	Steel
Features	Serrated Termination, Inner Teeth
Insulation	Non-Insulated
Insulation Diameter (Max)	0.145 in
Insulation Diameter (Min)	0.105 in
Length - Overall	0.773 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.024 in
Width - Outer Edges	0.37 in
Wire Gauge (AWG) (Max)	18 AWG
Wire Gauge (AWG) (Min)	14 AWG

640052 Series

Part	Insulation	Length - Overall	Stud/Tab Size	Thickness	Contact Material	Mounting Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Termination	Features	Width - Outer Edges	Terminal Type	Insulation Diameter (Min)	Insulation Diameter (Max)
TE Connectivity AMP Connectors 640052-1	Non-Insulated	0.773 in	10 Stud	0.024 in	Steel	Free Hanging (In-Line)	18 AWG	14 AWG	Crimp	Inner Teeth Serrated Termination	0.37 in	Circular	0.105 in	0.145 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
