Specification	182124

Body Finish	Silver
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Features	PL-259
Frequency - Max	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Shield Termination	Solder
Voltage Rating	500 V

1821 Series

Part	Voltage Rating	Dielectric Material	Body Finish	Body Material	Mating Cycles	Center Contact Plating	Frequency - Max	Features	Center Contact Material	Contact Termination	Impedance	Mounting Type	Connector Type	Fastening Type	Connector Style	Shield Termination	Housing Color	Number of Ports	Cable Group	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Impedance	Adapter Series	Conversion Type	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Center Gender	Adapter Type	Convert From (Adapter End)	Style
McGill Microwave Systems 182124	500 V	Polytetrafluoroethylene (PTFE)	Silver	Brass	500 cycles	Gold	300 MHz	PL-259	Brass	Solder Cup	Non-Constant	Free Hanging (In-Line)	Male Pin Plug	Threaded	UHF	Solder	Silver
McGill Microwave Systems 182115	500 V	Phenol Formaldehyde (Phenolic)	Nickel	Brass	500 cycles	Gold	300 MHz		Brass	Crimp	Non-Constant	Free Hanging (In-Line)	Male Pin Plug	Threaded	UHF	Crimp	Silver	1	Belden 9258 LMR-240 RG-8X	2 pcs	Connector Ferrule

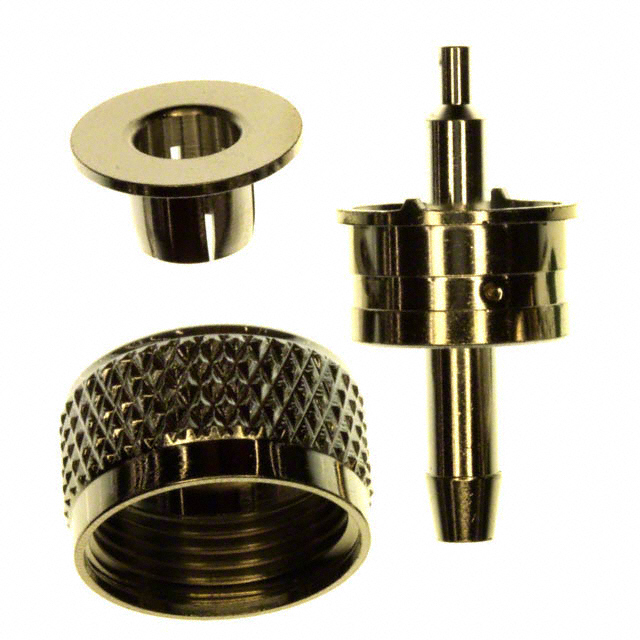

McGill Microwave Systems 182103	500 V	Phenol Formaldehyde (Phenolic)	Nickel	Brass	500 cycles	Silver	300 MHz		Brass	Crimp Solder	Non-Constant	Free Hanging (In-Line)	Male Pin Plug	Threaded	UHF	Push On	Silver	1	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	3 pcs	Connector Coupling Nut Ferrule
McGill Microwave Systems 182117	335 V	Polyoxymethylene (POM) Acetal	Nickel	Zinc Die Cast	500 cycles	Gold	2.5 GHz		Phosphor Bronze	Crimp		Free Hanging (In-Line)	Female Socket Jack	Threaded	Mini UHF	Crimp	Silver	1	188 188A 316 LMR-100 M17/119-RG174 RG-174	4 pcs	Connector Contact Ferrule Insulator	-55 °C	85 °C	50 Ohm
McGill Microwave Systems 182109		Polytetrafluoroethylene (PTFE)	Nickel	Brass		Gold	2.5 GHz		Brass			Free Hanging (In-Line)		Threaded								-65 °C	165 °C	50 Ohm	UHF to UHF	Same Series	Female Socket	UHF Jack	Female	Jack to Jack	Female Socket UHF Jack	Straight
McGill Microwave Systems 182110	335 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	500 cycles	Gold	2.5 GHz		Brass	Solder		Free Hanging (In-Line)	Male Pin Plug	Threaded	Mini UHF	Crimp	Silver	1	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	4 pcs	Connector Contact Coupling Nut Ferrule	-55 °C	85 °C	50 Ohm
McGill Microwave Systems 182113	335 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	500 cycles	Gold	2 GHz		Phosphor Bronze	Crimp		Free Hanging (In-Line)	Female Socket Jack	Threaded	Mini UHF	Crimp	Silver	1	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	3 pcs	Connector Contact Ferrule	-65 °C	165 °C	50 Ohm
McGill Microwave Systems 182123	335 V	Polytetrafluoroethylene (PTFE)	Nickel	Brass	500 cycles	Gold	2.5 GHz		Brass	Solder		Free Hanging (In-Line)	Male Pin Plug	Threaded	Mini UHF	Crimp	Silver	1	142 223 400 RG-55	4 pcs	Connector Contact Coupling Nut Ferrule	-55 °C	85 °C	50 Ohm
McGill Microwave Systems 182134		Polytetrafluoroethylene (PTFE)	Nickel	Brass		Gold	2.5 GHz		Brass			Free Hanging (In-Line) Right Angle		Threaded								-65 °C	165 °C	50 Ohm	UHF to UHF	Same Series	Female Socket	UHF Jack	Female Male	Plug to Jack	Male Pin UHF Plug	Right Angle
McGill Microwave Systems 182100	500 V	Phenol Formaldehyde (Phenolic)	Nickel	Brass	500 cycles	Gold	300 MHz		Brass	Crimp		Free Hanging (In-Line)	Male Pin Plug	Threaded	UHF	Crimp	Silver	1	Belden 7807A LMR-200 RG-58	2 pcs	Connector Ferrule			50 Ohm
