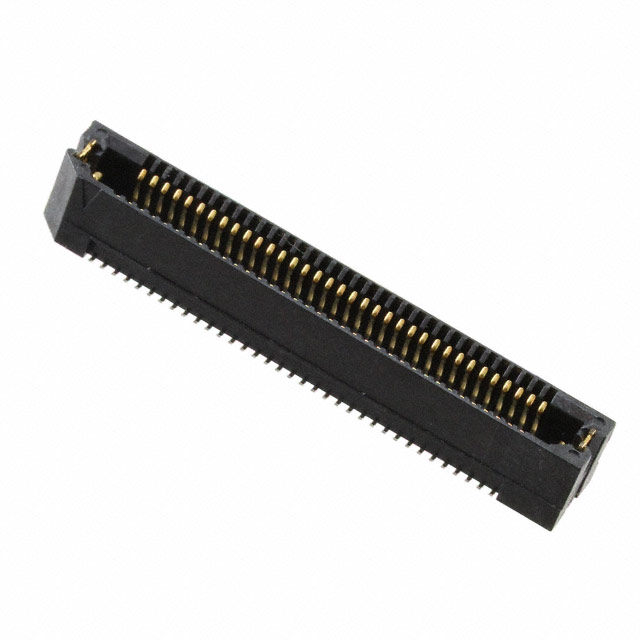

ASP-135029-01

Active

Samtec Inc.

CONN SOCKET 70POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET 70POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-135029-01

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Board Guide, Pick and Place, Latches
Height Above Board	0.206 in
Height Above Board	5.23 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

CONN SOCKET 70POS SMD GOLD

Part	Number of Rows	Features	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board	Height Above Board
Samtec Inc. ASP-135029-01	2	Board Guide, Latches, Pick and Place	70	Surface Mount	0.8 mm	0.031 in	Gold	0.76 Ám	30 Áin	Socket, Center Strip Contacts	0.206 in	5.23 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Position Connector Socket, Center Strip Contacts Surface Mount Gold
