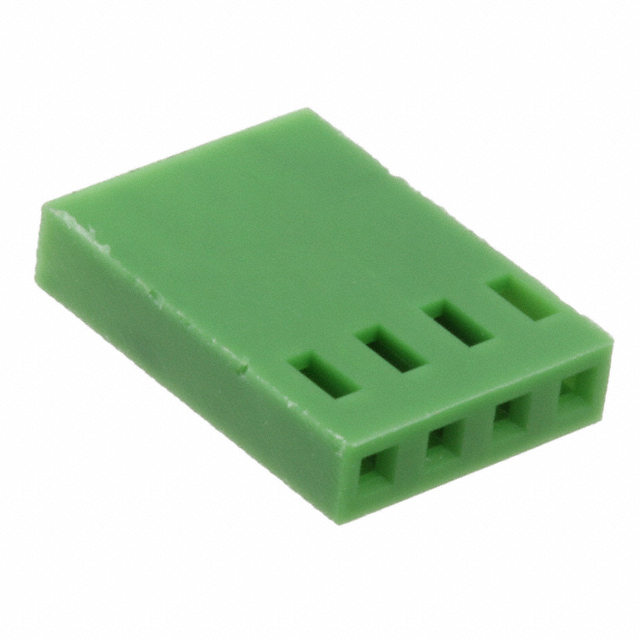

925366-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
925366-4
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 4POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 925366-4 | 925366 Series |
|---|---|---|
| Color | Green | Green |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 4 | 2 - 15 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
925366 Series
CONN RCPT HSG 5POS 2.54MM
| Part | Contact Termination | Contact Type | Number of Rows | Insulation Material | Pitch [x] | Pitch [x] | Connector Type | Mounting Type | Note | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 925366-5 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | |
TE Connectivity AMP Connectors 1-925366-4 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | 14 |
TE Connectivity AMP Connectors 1-925366-5 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | 15 |
TE Connectivity AMP Connectors 925366-6 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | 6 |
TE Connectivity AMP Connectors 925366-8 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | 8 |
TE Connectivity AMP Connectors 925366-4 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | 4 |
TE Connectivity AMP Connectors 925366-2 | Crimp | Female Socket | 1 | Nylon, Polyamide (PA) | 2.54 mm | 0.1 in | Receptacle | Free Hanging (In-Line) | Contacts Not Included | -65 ░C | 105 ░C | Green | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.01 | |
| 10 | $ 1.67 | |||
| 25 | $ 1.54 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.38 | |||
| 250 | $ 1.28 | |||
| 500 | $ 1.21 | |||
| 1000 | $ 1.14 | |||
| 2500 | $ 1.06 | |||
Description
General part information
925366 Series
4 Rectangular Connectors - Housings Receptacle Green 0.100" (2.54mm)
