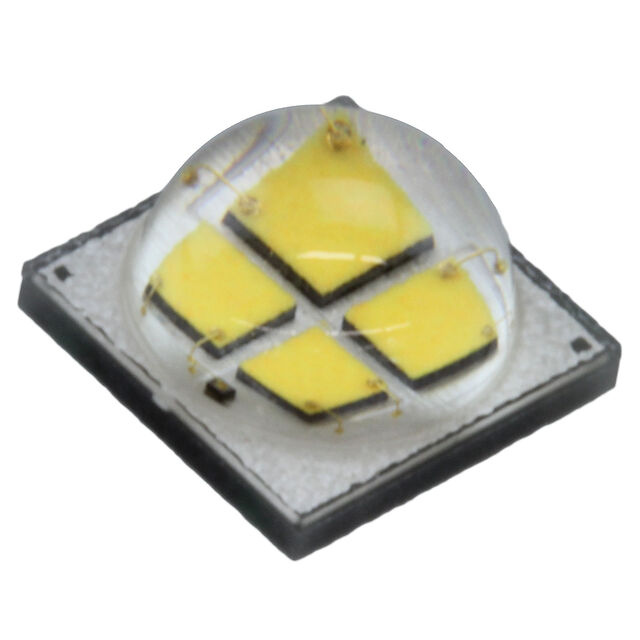

Specification	XMLBEZ-00-0000-0D0UU430H

CCT (K)	3000 K
CCT Description	2-Step MacAdam Ellipse
Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max	1 A
Current - Test	350 mA
Flux (Maximum)	360 lm
Flux (Minimum)	340 lm
Flux (Typical)	350 lm
Height - Seated (Max)	0.124 in
Lumens/Watt	83 lm/W
Mounting Type	Surface Mount
Package / Case	2020 (5050 Metric)
Package Name	SMD
Size / Dimension Length	0.197 in
Size / Dimension Width	0.197 in
Thermal Resistance of Package	2.5 °C/W
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	12 VAC

XMLBEZ Series

...

Part	Package / Case	Current - Max	Flux (Typical)	Flux (Maximum)	Flux (Minimum)	Lumens/Watt	Package Name	Voltage - Forward (Vf) (Typ)	Size / Dimension Length	Size / Dimension Width	CRI (Color Rendering Index)	CCT (K)	CCT Description	Viewing Angle	Color	Height - Seated (Max)	Mounting Type	Current - Test	Thermal Resistance of Package	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XMLBEZ-00-0000-0B0UT427H	2020 (5050 Metric)	2 A	250 lm	260 lm	240 lm	60 lm/W	SMD	6 V	0.197 in	0.197 in	90	2700 K	2-Step MacAdam Ellipse	115 °	Warm White	0.124 in	Surface Mount	700 mA
CreeLED, Inc. XMLBEZ-00-0000-0B00V240F	2020 (5050 Metric)	2 A	410 lm	420 lm	400 lm	98 lm/W	SMD	6 V	0.197 in	0.197 in		4000 K	4-Step MacAdam Ellipse	115 °	Neutral White	0.124 in	Surface Mount	700 mA	2.5 °C/W	80
CreeLED, Inc. XMLBEZ-00-0000-0D0UU430H	2020 (5050 Metric)	1 A	350 lm	360 lm	340 lm	83 lm/W	SMD	12 VAC	0.197 in	0.197 in	90	3000 K	2-Step MacAdam Ellipse	115 °	Warm White	0.124 in	Surface Mount	350 mA	2.5 °C/W
CreeLED, Inc. XMLBEZ-00-0000-0B00V30E1	2020 (5050 Metric)	2 A	430 lm	440 lm	420 lm	102 lm/W	SMD	6 V	0.197 in	0.197 in		6500 K		115 °	Cool White	0.124 in	Surface Mount	700 mA	2.5 °C/W
CreeLED, Inc. XMLBEZ-00-0000-0B00V340H	2020 (5050 Metric)	2 A	430 lm	440 lm	420 lm	102 lm/W	SMD	6 V	0.197 in	0.197 in		4000 K	2-Step MacAdam Ellipse	115 °	Neutral White	0.124 in	Surface Mount	700 mA		80
CreeLED, Inc. XMLBEZ-00-0000-0B00V440H	2020 (5050 Metric)	2 A	450 lm	460 lm	440 lm	107 lm/W	SMD	6 V	0.197 in	0.197 in		4000 K	2-Step MacAdam Ellipse	115 °	Neutral White	0.124 in	Surface Mount	700 mA	2.5 °C/W	80
CreeLED, Inc. XMLBEZ-00-0000-0D0HV440F	2020 (5050 Metric)	1 A	450 lm	460 lm	440 lm	107 lm/W	SMD	12 VAC	0.197 in	0.197 in	80	4000 K	4-Step MacAdam Ellipse	115 °	Neutral White	0.124 in	Surface Mount	350 mA	2.5 °C/W
CreeLED, Inc. XMLBEZ-00-0000-0B00V30E2	2020 (5050 Metric)	2 A	430 lm	440 lm	420 lm	102 lm/W	SMD	6 V	0.197 in	0.197 in		5700 K		115 °	Cool White	0.124 in	Surface Mount	700 mA	2.5 °C/W
CreeLED, Inc. XMLBEZ-00-0000-0D0HU527F	2020 (5050 Metric)	1 A	370 lm	380 lm	360 lm	88 lm/W	SMD	12 VAC	0.197 in	0.197 in	80	2700 K	4-Step MacAdam Ellipse	115 °	Warm White	0.124 in	Surface Mount	350 mA
CreeLED, Inc. XMLBEZ-00-0000-0B0HV327H	2020 (5050 Metric)	2 A	430 lm	440 lm	420 lm	102 lm/W	SMD	6 V	0.197 in	0.197 in	80	2700 K	2-Step MacAdam Ellipse	115 °	Warm White	0.124 in	Surface Mount	700 mA	2.5 °C/W
