Specification	MPQ8632GLE-4-Z

Current - Output	4 A
Frequency - Switching (Max)	1 MHz
Frequency - Switching (Min)	200 kHz
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Output Configuration	Positive
Output Type	Adjustable

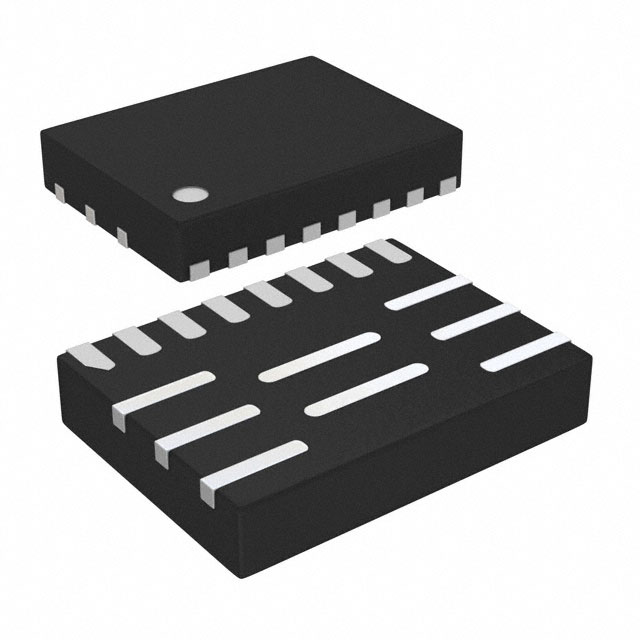

Package / Case	16-PowerVFQFN
Package Length	3 mm
Package Name	16-QFN
Package Width	4 mm
Synchronous Rectifier	Yes
Topology	Buck
Voltage - Input (Max)	18 V
Voltage - Input (Min)	4.5 V
Voltage - Output (Max)	13 V
Voltage - Output (Min/Fixed)	0.611 V

MPQ8632 Series

Part	Voltage - Output (Min/Fixed)	Function	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (Max)	Output Configuration	Current - Output	Voltage - Input (Min)	Output Type	Frequency - Switching (Max)	Frequency - Switching (Min)	Number of Outputs	Package Width	Package Name	Package Length	Package / Case	Mounting Type	Topology	Synchronous Rectifier	Voltage - Output (Max)
Monolithic Power Systems Inc. MPQ8632GLE-10-P	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	10 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	16-QFN	3 mm	16-PowerVFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GLE-4-Z	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	4 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	16-QFN	3 mm	16-PowerVFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GLE-4-P	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	4 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	16-QFN	3 mm	16-PowerVFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GL-12-Z	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	12 A	2.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	13-QFN	3 mm	13-VFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GL-8-P	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	8 A	2.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	13-QFN	3 mm	13-VFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GL-12-P	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	12 A	2.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	13-QFN	3 mm	13-VFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GVE-15-Z	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	15 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	29-QFN	5 mm	29-VFQFN Exposed Pad	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GVE-20-Z	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	20 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	29-QFN	5 mm	29-VFQFN Exposed Pad	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632DGLE-12-P	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	12 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	16-QFN	3 mm	16-PowerVFQFN	Surface Mount	Buck	Yes	13 V
Monolithic Power Systems Inc. MPQ8632GLE-12-Z	0.611 V	Step-Down	125 °C	-40 °C	18 V	Positive	12 A	4.5 V	Adjustable	1 MHz	200 kHz	1	4 mm	16-QFN	3 mm	16-PowerVFQFN	Surface Mount	Buck	Yes	13 V
