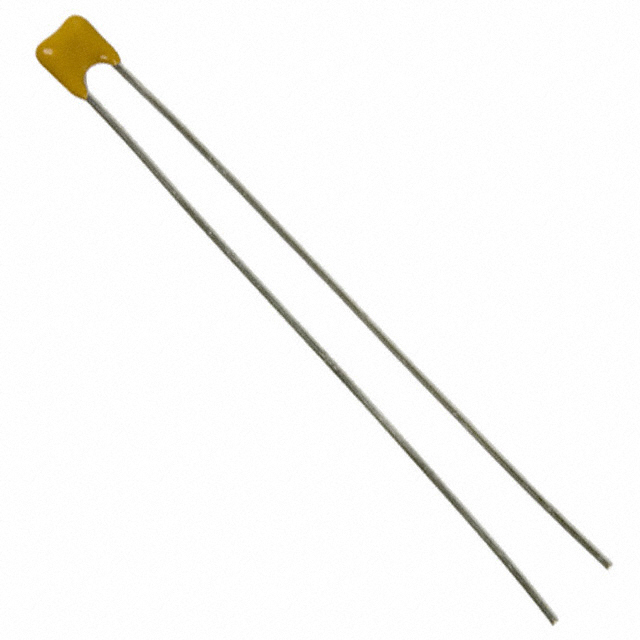

AR151C104K4R

Active

Kyocera AVX

CAP CER 0.1UF 100V X7R RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AR151C104K4R

Active

Kyocera AVX

CAP CER 0.1UF 100V X7R RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AR151C104K4R

Applications	Automotive
Capacitance	100000 pF
Height - Seated (Max)	3.81 mm
Height - Seated (Max) [Max]	0.15 in
Lead Spacing	0.1 in
Lead Spacing	2.54 mm
Lead Style	Straight
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.15 "
Size / Dimension [x]	3.81 mm
Size / Dimension [y]	0.1 in
Size / Dimension [y]	2.54 mm
Temperature Coefficient	X7R
Tolerance	10 %
Voltage - Rated	100 V

AR151C Series

Part	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Lead Style	Package / Case	Mounting Type	Applications	Lead Spacing	Lead Spacing	Capacitance	Temperature Coefficient	Ratings	Voltage - Rated
Kyocera AVX AR151C103K4RTR2-NF	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	10000 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C104K4R	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	100000 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C103K4RTR1-C	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	10000 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C103K4R-C	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	10000 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C472K4R	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	4700 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C102K4R-UD	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	0.001 µF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C103K4R	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	10000 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C222K4R	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	2200 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C103K4RTR1-NF	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	10000 pF	X7R	AEC-Q200	100 V
Kyocera AVX AR151C102K4R	0.15 in	3.81 mm	0.15 "	3.81 mm	0.1 in	2.54 mm	-55 °C	125 °C	10 %	Straight	Radial	Through Hole	Automotive	0.1 in	2.54 mm	0.001 µF	X7R	AEC-Q200	100 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.60
		10	$ 0.36
		50	$ 0.26
		100	$ 0.23
		500	$ 0.18
		1000	$ 0.17
		3000	$ 0.15
		5000	$ 0.14

Description

General part information

AR151C Series

0.1 µF ±10% 100V Ceramic Capacitor X7R Radial

Documents

Technical documentation and resources
