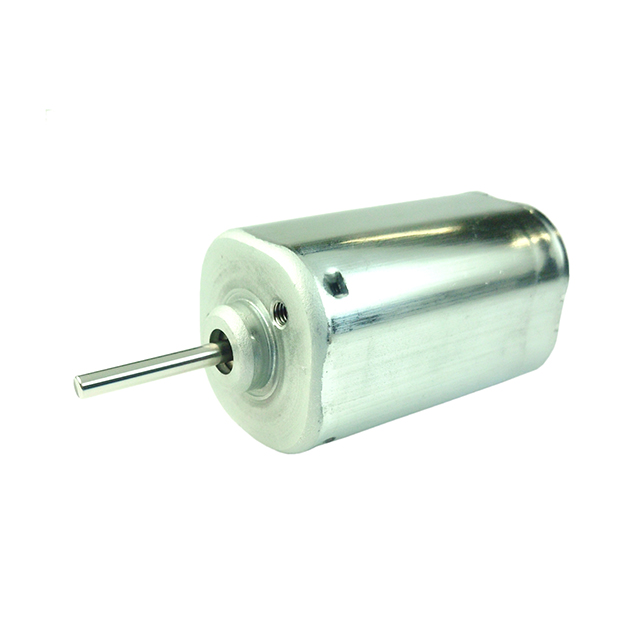

SE24P1JTC

Obsolete

NMB TECHNOLOGIES

STANDARD MOTOR 2508 RPM 24V

Search across all available documentation for this part.

Obsolete

NMB TECHNOLOGIES

STANDARD MOTOR 2508 RPM 24V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 2508 RPM 24V

Part	Motor Type	Voltage - Rated	RPM	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Mounting Hole Spacing	Mounting Hole Spacing	Function	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Termination Style	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
NMB TECHNOLOGIES SE24P1JTC	Brushed	24 VDC	2508 RPM	2.5 mm	0.098 in	20 mm	0.787 in	0.63 in	16 mm	Standard	2.83 oz-in	20 mNm	Solder Tab	DC Motor	0.945 in	24 mm	24 mm	0.945 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Brushed DC Motor Standard 2508 RPM 24VDC

Technical documentation and resources
