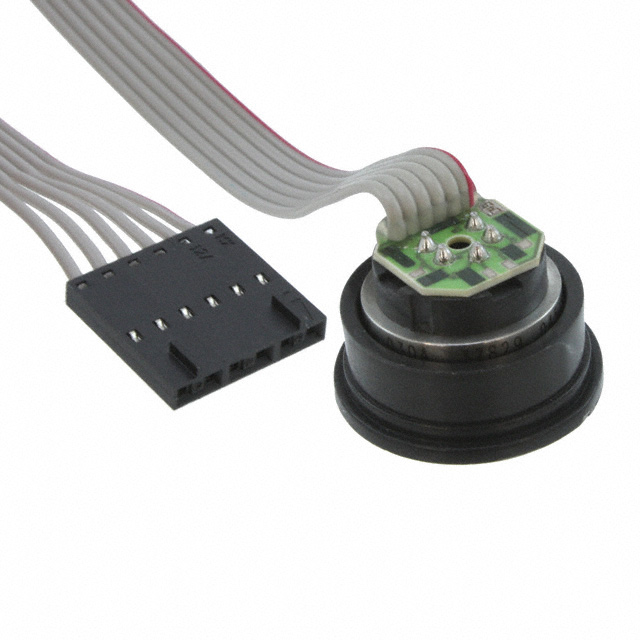

86-030A-C
ActiveTE Connectivity Measurement Specialties
SENSOR 30PSIA 0.1V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86-030A-C
ActiveTE Connectivity Measurement Specialties
SENSOR 30PSIA 0.1V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 86-030A-C |
|---|---|
| Accuracy | 0.1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 90 PSI |
| Maximum Pressure [Max] | 620.53 kPa |
| Operating Pressure | 206.84 kPa |
| Operating Pressure | 30 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | Cylinder |
| Port Style | No Port |
| Termination Style | Cable with Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 96.05 | |
| 5 | $ 81.01 | |||
| 10 | $ 75.29 | |||
| 25 | $ 68.35 | |||
| 50 | $ 63.53 | |||
| 100 | $ 59.05 | |||
Description
General part information
86-030 Series
Pressure Sensor 30PSI (206.84kPa) Absolute 0 mV ~ 100 mV Cylinder
