76103WS 008100

Active

Belden Inc.

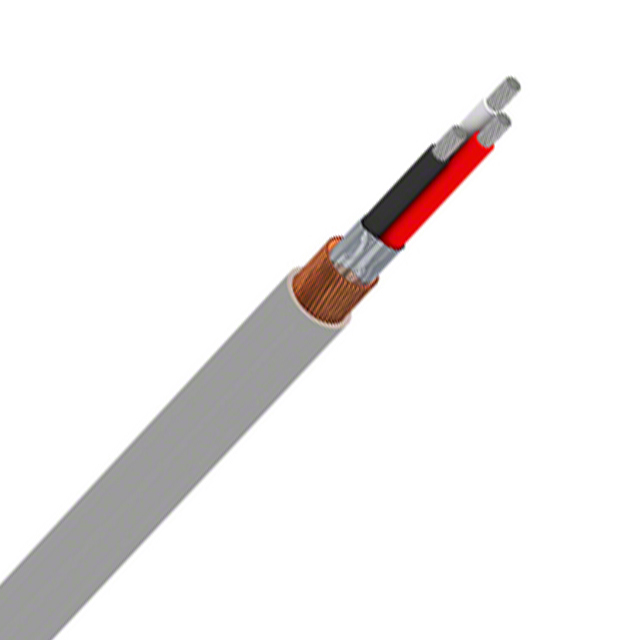

CABLE 3CON 26AWG CHROM SHLD 100'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3CON 26AWG CHROM SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	76103WS 008100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.188 "
Jacket (Insulation) Diameter [diameter]	4.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Spiral
Voltage	300 V
Wire Gauge	26 AWG

Part	Jacket (Insulation) Material	Voltage	Conductor Material	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Number of Conductors	Jacket Color	Shield Coverage	Length [x]	Length [x]	Conductor Insulation	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Strand	Features
Belden Inc. 76103WS 008100	Poly-Vinyl Chloride (PVC)	300 V	Copper Tinned	Foil Spiral	0.04 in	1.016 mm	Aluminum Copper Tinned	3	Chrome	90 % 100 %	30.5 m	100 ft	Poly-Vinyl Chloride (PVC)	26 AWG	0.188 "	4.78 mm	Multi-Conductor	7 Strands 34 AWG	Oil Resistant
