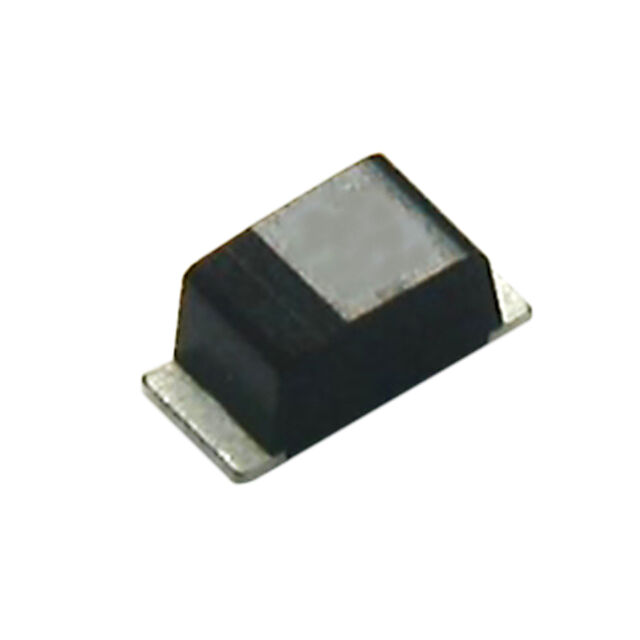

ACDBMT140-HF

Active

Comchip Technology

DIODE SCHOTTKY 40V 1A 2-PIN SOD-123H T/R AUTOMOTIVE AEC-Q101

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 40V 1A 2-PIN SOD-123H T/R AUTOMOTIVE AEC-Q101

Technical Specifications

Parameters and characteristics for this part

Specification	ACDBMT140-HF

Capacitance @ Vr, F	120 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	500 µA
Grade	Automotive
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123H
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123H
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If	500 mV

DIODE SCHOTTKY 40V 1A 2-PIN SOD-123H T/R AUTOMOTIVE AEC-Q101

Part	Mounting Type	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Qualification	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Package / Case	Supplier Device Package	Technology	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Capacitance @ Vr, F	Grade	Voltage - Forward (Vf) (Max) @ If
Comchip Technology ACDBMT140-HF	Surface Mount	500 µA	1 A	AEC-Q101	40 V	200 mA, 500 ns	SOD-123H	SOD-123H	Schottky	-55 °C	125 °C	120 pF	Automotive	500 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 1A Surface Mount SOD-123H
