MSAS-05PMMR-SF7003
ActiveAmphenol LTW

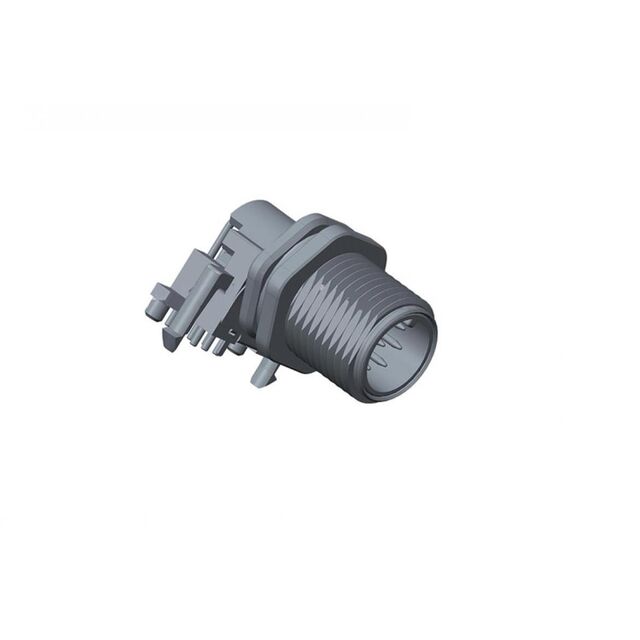

CONN M12 RA MALE 5PIN SHIELD M12
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSAS-05PMMR-SF7003
ActiveAmphenol LTW
CONN M12 RA MALE 5PIN SHIELD M12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAS-05PMMR-SF7003 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polybutylene Terephthalate (PBT), Polycarbonate (PC) |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-5 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.96 | |
| 10 | $ 8.41 | |||
| 25 | $ 7.60 | |||
| 40 | $ 7.22 | |||
| 80 | $ 6.70 | |||
| 230 | $ 6.01 | |||
| 440 | $ 5.63 | |||
| 945 | $ 5.23 | |||
Description
General part information
MSAS-05PMMR Series
5 Position Circular Connector Receptacle, Male Pins Solder
