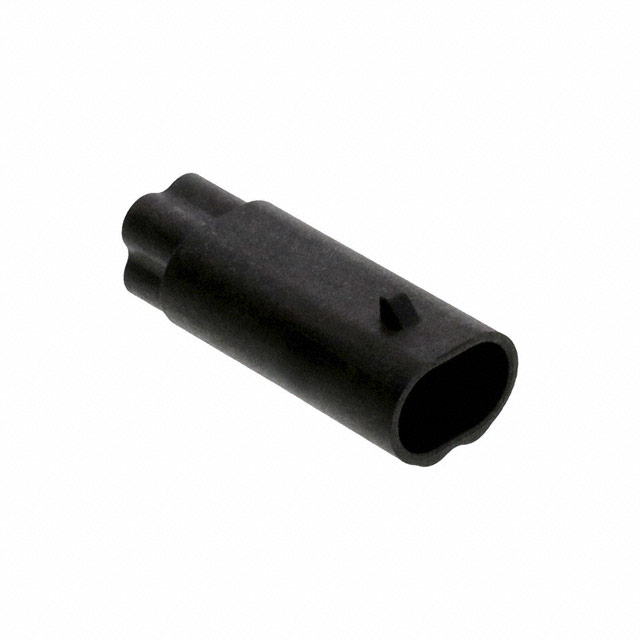

776308-1

Active

TE Connectivity AMP Connectors

CONN ML HSG 4POS 6.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ML HSG 4POS 6.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	776308-1

Color	Black
Connector Type	Housing for Male Insert
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Surface Mount
Note	Contacts Not Included
Number of Positions	4
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.236 in
Pitch [x]	6 mm
Row Spacing	6.3 mm
Row Spacing	0.248 in

CONN ML HSG 4POS 6.00MM

Part	Number of Positions	Contact Type	Fastening Type	Row Spacing	Row Spacing	Connector Type	Insulation Material	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Note	Color	Contact Termination	Number of Rows	Mounting Type
TE Connectivity AMP Connectors 776308-1	4	Male Pin	Locking Ramp	6.3 mm	0.248 in	Housing for Male Insert	Glass Filled, Nylon, Polyamide (PA)	0.236 in	6 mm	-40 °C	105 ░C	Contacts Not Included	Black	Crimp	2	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Housing for Male Insert Black 0.236" (6.00mm)
